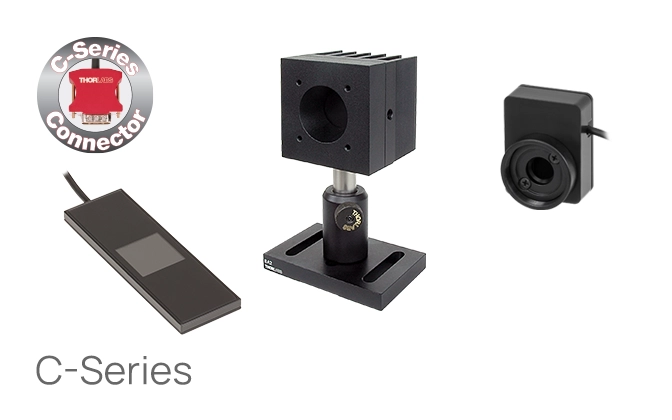

C-Series Thermal Power Sensors (S400 Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Thermopile sensor heads with a broadband absorber and a relatively flat spectral response, for measuring laser power from the deep UV into the far infrared. Most heads accept free space input and a fibre adapter, and connect to any C-Series console.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Power ranges covering 10 microwatts to 200 W |
| Specification | Wavelength ranges covering 190 nm to 20 micrometres |
| S401C | 10 microwatts to 1 W, resolution 1 microwatt, response time 1.1 s |
| S405C maximum average power density | 1.5 kW per square centimetre |
| Linearity | plus or minus 0.5% |
| Measurement uncertainty | plus or minus 3% at 1064 nm |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
