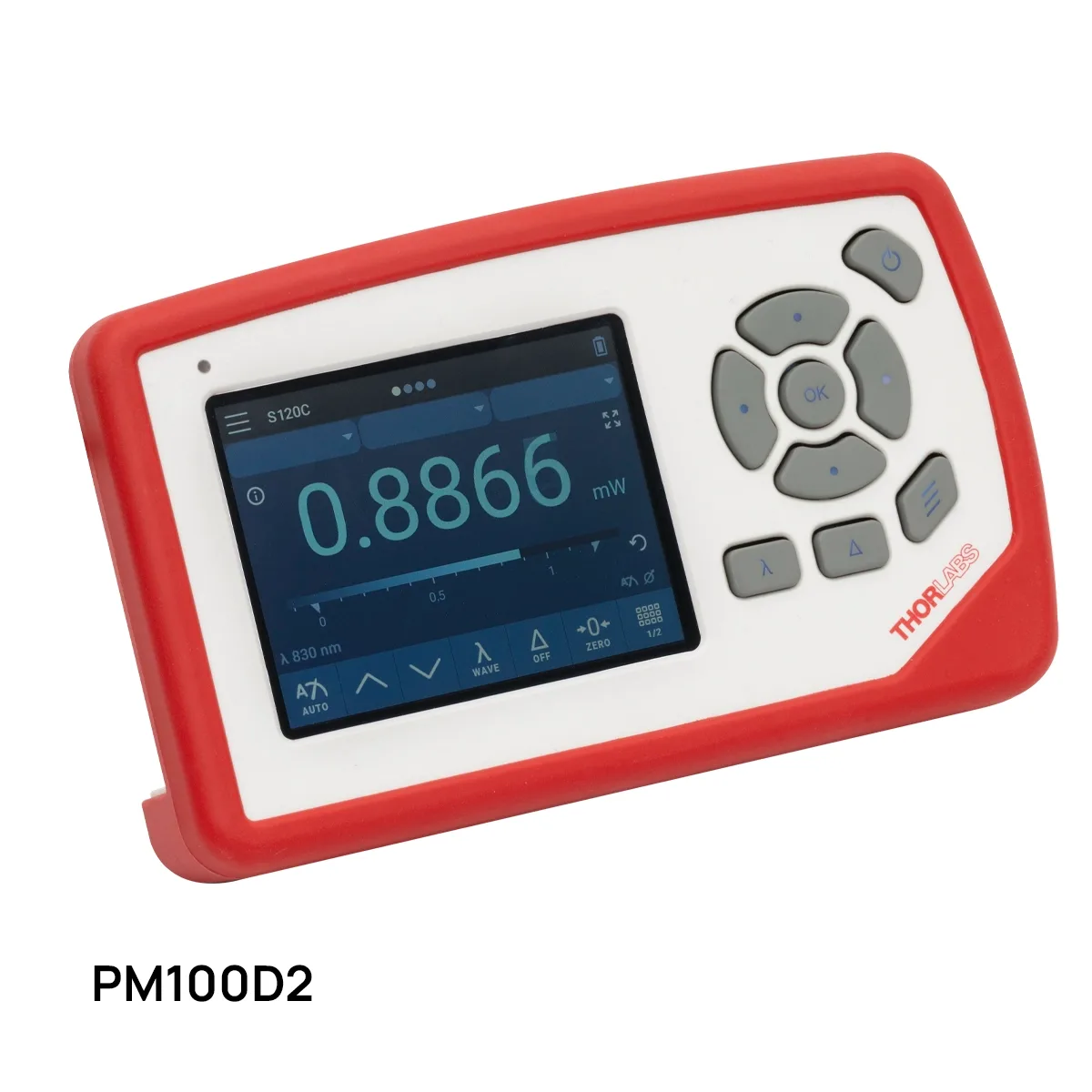

PM100D2 and PM100D3 Digital Handheld Power and Energy Meter Consoles
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Handheld consoles with a colour touchscreen that read Thorlabs photodiode, thermal and pyroelectric sensors. They log data to internal memory and support free space and fibre measurements, with over forty compatible sensor heads.
Plan your specification
Choose a PM100D2 or PM100D3 with the right sensor
Specify the console and detector together. The useful wavelength and measurement range depend on the selected sensor and configuration, so a console model alone is not a complete optical measurement specification.
- Wavelength, beam and measurement mode
- State the wavelength, beam size and whether you need continuous-wave power, pulsed energy or a time trace. Include the expected power or pulse energy and repetition rate so the proposed sensor can be checked for range, aperture and damage limits.
- Exact console, compatible sensor and acquisition
- Identify PM100D2 or PM100D3 explicitly and request confirmation of the compatible sensor, measurement mode and data interface. Thorlabs' OPM software manual specifies USB for PM100D3 Scope Mode; confirm the current software and configuration for your intended acquisition.
- Complete quotation and calibration
- Ask the quotation to list the console, sensor head, cables, adapters and mounts separately. Confirm calibration documents, any recalibration arrangements, current availability, lead time and the agreed support scope for Bangladesh.
Product documentation
Technical Specifications
| Parameter | Value |
|---|---|
| Display | 3.5 inch IPS 640 x 480 colour touchscreen, 50 Hz refresh |
| AD converter | 16-bit |
| Sampling speed | 1 kS/s, 100 kS/s in burst and scope modes on the PM100D3 |
| Analogue output | 0 to 2.5 V, accuracy plus or minus 3%, bandwidth up to 100 kHz |
| Specification | 8 GB internal flash memory with USB access |
| Sensor temperature range | -10 to 80 degrees C |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Console model and existing sensor, if any
- Wavelength, beam size, power or pulse energy and repetition rate
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
