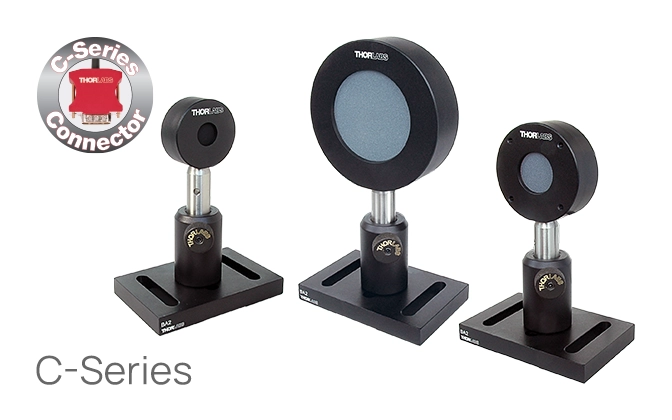

C-Series Pyroelectric Energy Sensors (ES Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Pyroelectric heads that measure the energy of individual laser pulses across a very wide spectral range. Standard, high energy and fast versions cover different repetition rates, and a BNC to C-Series adapter is supplied for use with Thorlabs consoles.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Energy ranges covering 10 microjoules to 15 J |
| Specification | Wavelength ranges covering 185 nm to 25 micrometres |
| Specification | Repetition rates up to 10 kHz on the fast ES4 series |
| Maximum power density | 65 MW per square centimetre on the high energy series |
| Linearity | plus or minus 1% |
| Measurement uncertainty | plus or minus 5% from 185 nm to 25 micrometres |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
