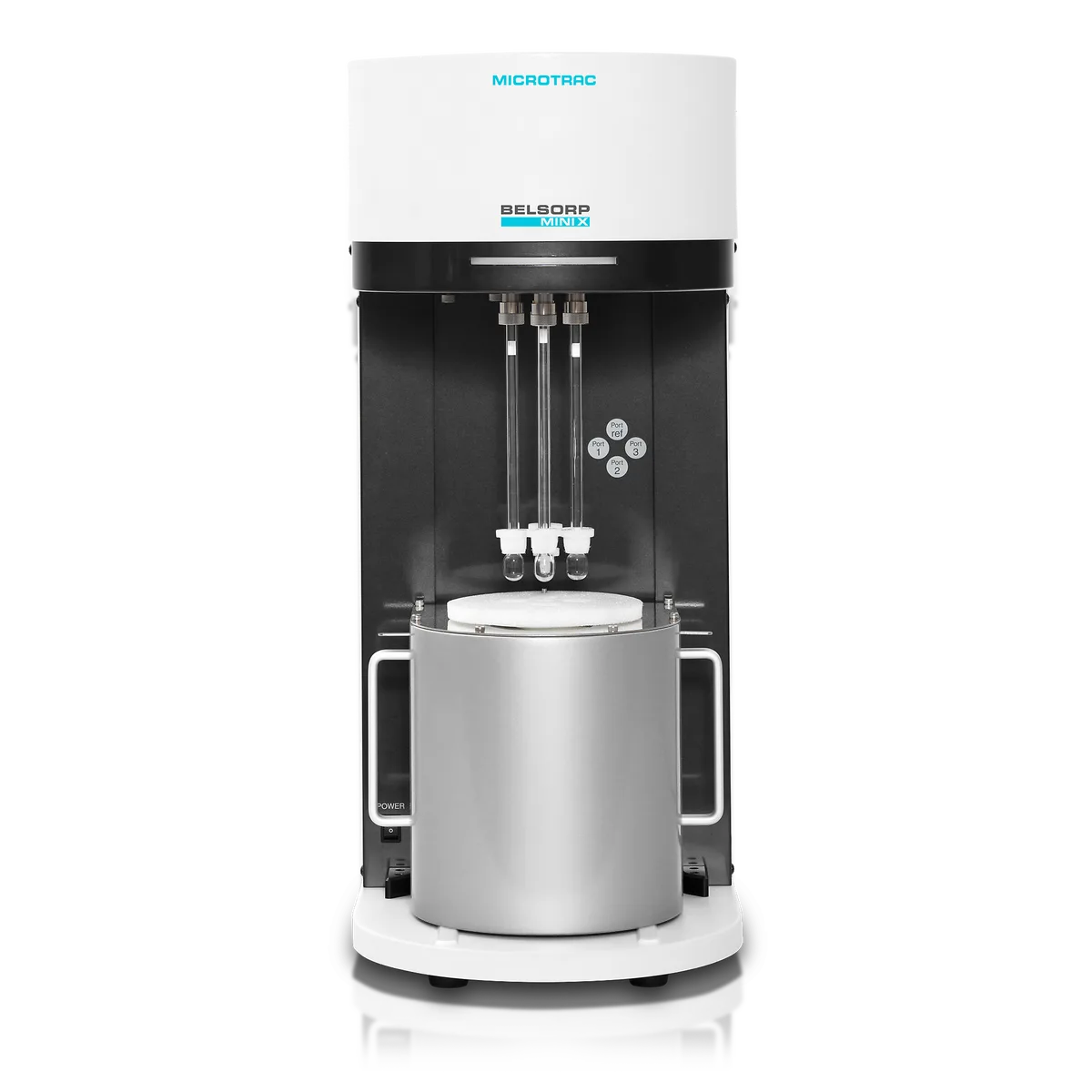

BELSORP MINI X: BET Specific Surface Area and Pore Size Analyser
Brand: Microtrac MRB | Category: Scientific & Laboratory Equipment
Volumetric gas adsorption analyser for BET specific surface area and pore size distribution, the routine workhorse of the BELSORP range. It measures nitrogen or other gas uptake at cryogenic temperature and derives surface area and pore structure from the isotherm.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Gas ports | 2 ports (5 ports max.) |
| Number of measurements ; (High Accuracy mode) | Max. 4 ports simultaneously (3 ports in High Accuracy mode) |
| Measurement range (specific surface) | 0.01 m2/g and above (N 2 ) ; (depending on sample density) |
| Pore size distribution (Diameter) | 0.7 - 500 nm, Option: 0.35 nm by molecular probe method possible |
| Low pressure isotherm | p/p0 = 10^-4 ; (N 2 @77K, Ar @87K) |
| Pressure transducer | 133 kPa (1000 Torr) x 6 units |
| Sample tube | Standard tube, approx. 1.8 cm3 (optional: 5 cm3) |
| Dimensions (W x H x D) | 280 x 650 x 465 mm (excluding vacuum pump & PC) |
| Weight (main body) | 38 kg (excluding vacuum pump & PC) |
| Utility - Power | Single phase, AC 100~240 V (50 / 60 Hz) / 10A (incl. R.P.), 50 / 60 Hz |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Microtrac MRB equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
