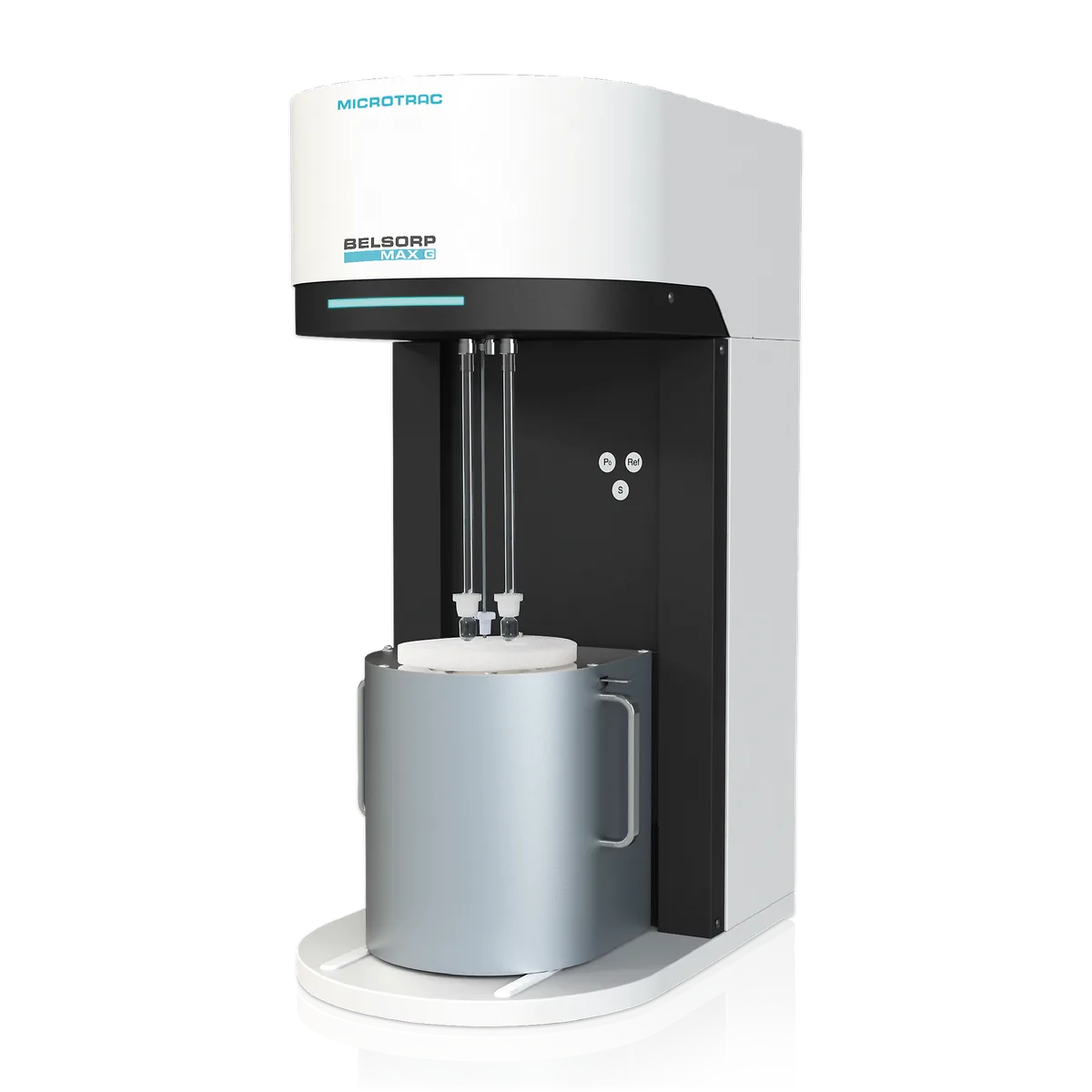

BELSORP MAX G: High-Precision Gas Adsorption Analyser
Brand: Microtrac MRB | Category: Scientific & Laboratory Equipment
High precision gas adsorption analyser for surface area and pore size distribution, configured for permanent gases rather than vapours. It sits between the MINI X and the MAX X, giving research grade precision for laboratories that do not need vapour capability.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Gas ports | 2 ports (5 ports max.) |
| Number of measurements ; (High Accuracy mode) | 1 port in High Accuracy mode |
| Measurement range (specific surface) | 0.01 m2/g and above (N 2 ) ; 0.0005 m2/g and above (Kr) ; (depending on sample density) |
| Pore size distribution (Diameter) | 0.35 - 500 nm |
| Low pressure isotherm | p/p0 = 10^-8 ; (N 2 @77K, Ar @87K) |
| Pressure transducer | 133 kPa (1000 Torr) x 3 units ; 1.33 kPa (10 Torr) x 1 unit ; 0.133 kPa (MP) or 0.0133 kPa (LP) x 1 unit |
| Sample tube | Standard tube, approx. 1.8 cm3 (optional: 5 cm3) |
| Dimensions (W x H x D) | 320 x 740 x 465 mm |
| Utility - Power | Main unit: AC 100 - 240 V / 850 W, 50 / 60 Hz (including vacuum pump) |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Microtrac MRB equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
