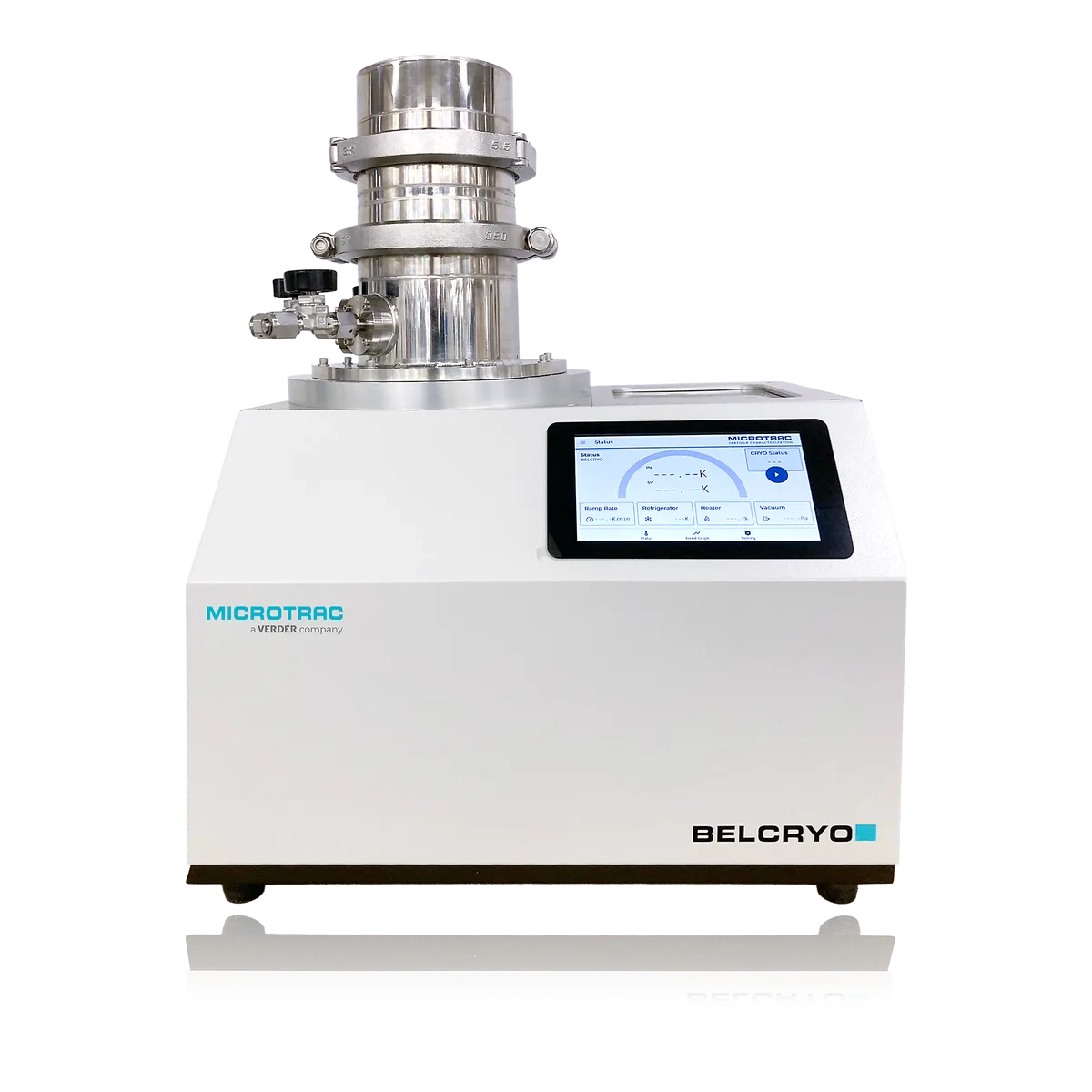

BELCRYO X: High-Precision Cryogenic Unit
Brand: Microtrac MRB | Category: Scientific & Laboratory Equipment
Cryogenic temperature control unit for BELSORP adsorption analysers, replacing the liquid nitrogen dewar with a closed cycle cooler. It removes the need to refill coolant during long isotherm runs and holds the adsorption temperature more steadily than an evaporating bath.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Temperature Range | 35~473K |
| Temperature Stability | ±0.001K~0.01K |
| Dimensions (W x H x D) | W 450 × D 360 × H 590 mm (excluding connectors and fittings) |
| Weight | Approx. 50 kg |
| Power Requirement | 1200 VA, AC 100-240 V (50/60 Hz) Service Outlet Capacity Max 600 W (for pump) |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Microtrac MRB equipment requirements in Bangladesh.
