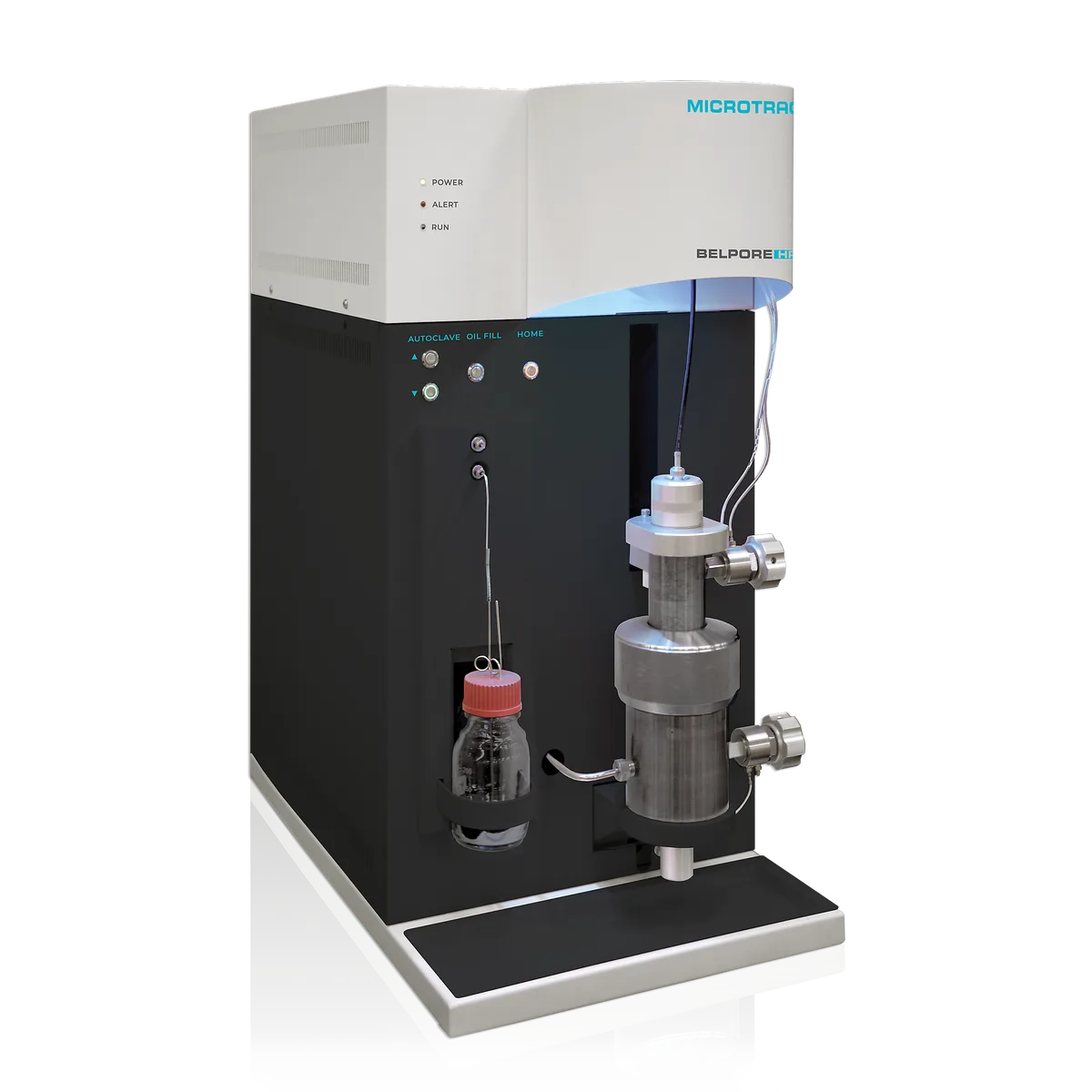

BELPORE Series: Mercury Porosimeter
Brand: Microtrac MRB | Category: Scientific & Laboratory Equipment
Mercury intrusion porosimeter that forces mercury into a porous solid under increasing pressure to derive pore size distribution and total pore volume. It covers the macropore and mesopore range that gas adsorption cannot reach, and is used on ceramics, catalysts, cements and rock.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Pressure range | LP: Vacuum up to 450 KPa ; MP: 0.1 - 228 MPa ; HP: 0.1 - 414 MPa |
| Resolution LP | 0.001 kPa in measuring range: vacuum to 0.1 kPA / 0.01 kPa in measuring range 0.1 - 450 kPA |
| Resolution MP | 0.001 MPa in measuring range 0.1 - 100 MPa / 0.01 MPa in measuring range 100 - 228 MPa |
| Resolution HP | 0.001 MPa in measuring range 0.1 - 100 MPa / 0.01 MPa in measuring range 100 - 414 MPa |
| Pressure detection accuracy | better than 0.1% F.S. |
| Pore size diameter | LP: 180 - 3.25 µm (UMP: 1,000 - 3.8 µm) ; MP: 15 - 0.0065 µm ; HP: 15 - 0.0036 µm |
| Particle size diameter | LP: 330 - 15 µm (UMP: 3,000 - 15 µm) ; MP: 40 - 0.015 µm ; HP: 40 - 0.01 µm |
| Max. detectable volume | LP & MP: 0.5 cm³ - 2 cm³ ; HP: 0.5 cm³ |
| Volume detection accuracy | better than 1% F.S. |
| Max. number of measuring points | 10.000 intrusion ; 10.000 extrusion |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
