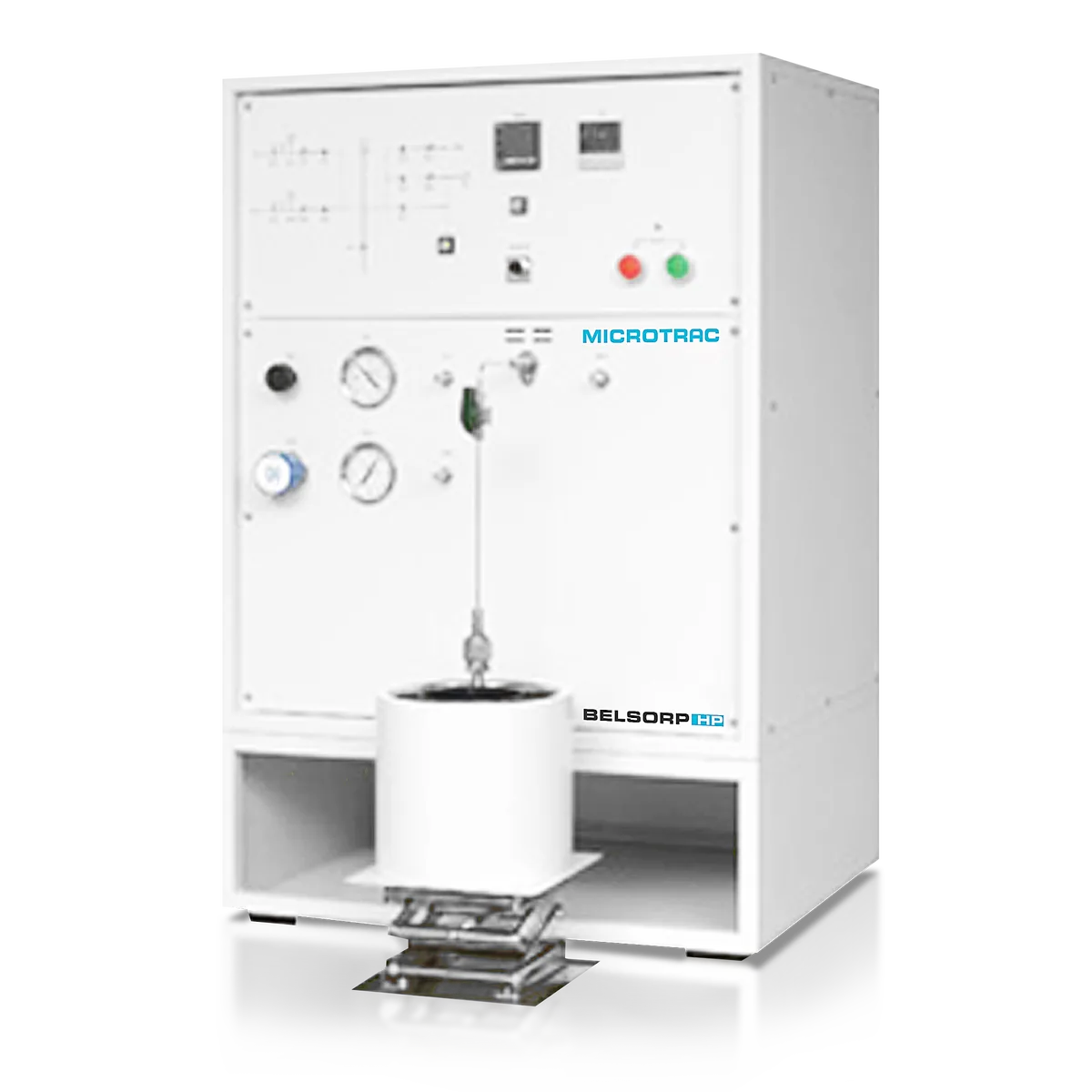

BELSORP HP: High Pressure Gas Adsorption Instrument
Brand: Microtrac MRB | Category: Scientific & Laboratory Equipment
High pressure adsorption instrument for measuring gas uptake well above atmospheric pressure. That is the regime that matters for hydrogen and methane storage, for carbon dioxide capture and for screening adsorbents used in gas separation. Isotherms are measured volumetrically, as on the other BELSORP instruments, but with a pressure range that ordinary surface area analysers do not reach.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Pressure transducer | Ads isotherm measurements can be achieved by F.S 0.133 MPa and F.S. 13.5 MPa pressure transducers from low to high pressure region. |
| Measurement pressure range | 90% of high pressure transducer F.S. |
| Temperature range | Measurement temp: ; Water bath + Chiller:-10-70°C (non-freezing liquid for settings below 10°C) ; Dewar vessel with LN 2 or LAr level controller: 77K, 87K (OP) ; Pretreatment temp: ; 50-400°C (OP:50-800°C) |
| Dimensions (W x H x D) | 600 x 910 x 720 mm |
| Weight | 90 kg |
| Utility - Power | AC 100 ~ 120V/200 ~ 240 V, 800 W (excluding vacuum pump) , 50 / 60 Hz |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Microtrac MRB equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
