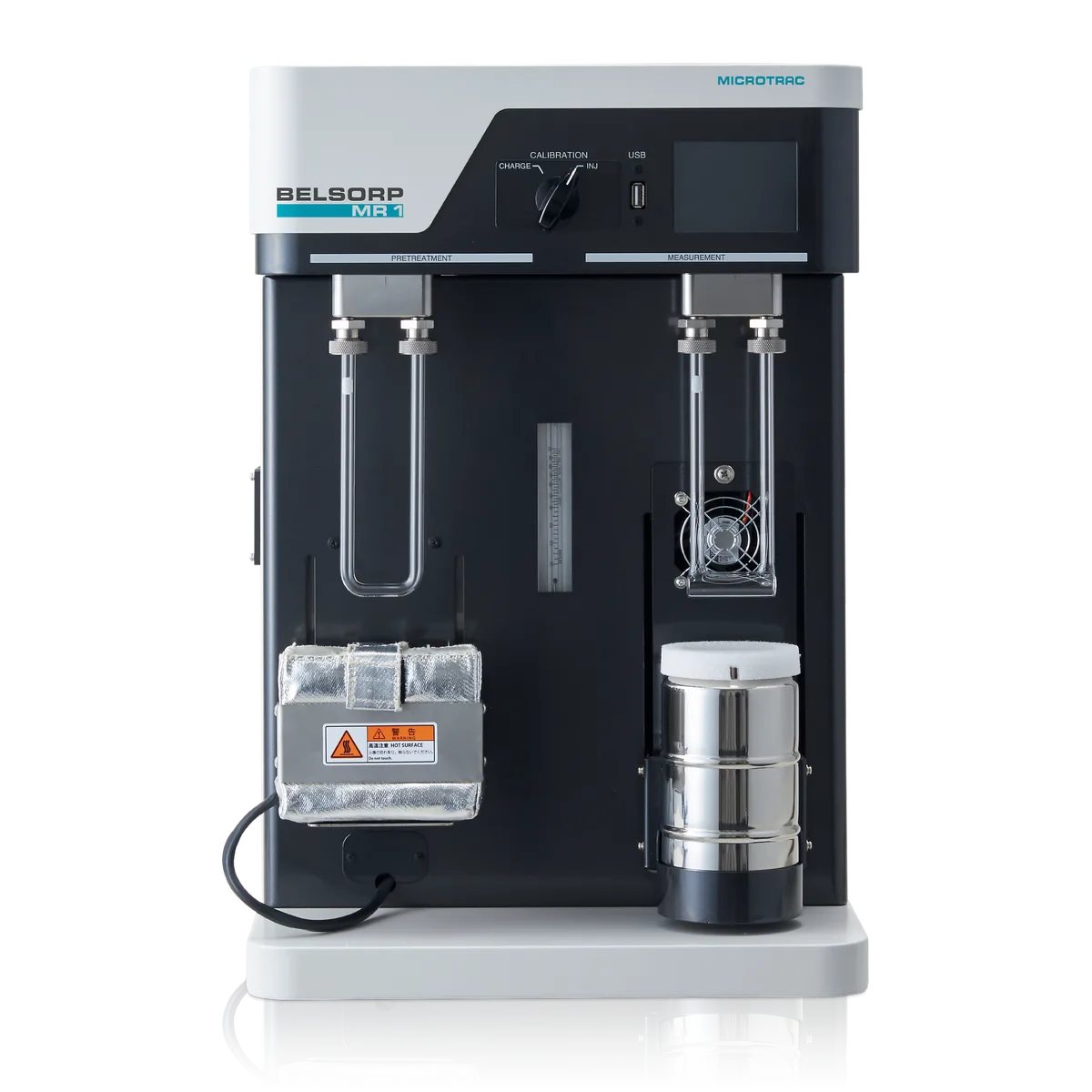

BELSORP MR1: BET Surface Area Analyser
Brand: Microtrac MRB | Category: Scientific & Laboratory Equipment
Single point and multipoint BET surface area analyser aimed at routine quality control rather than full isotherm research. Where a laboratory only needs a specific surface area figure per batch, it gives that result faster than a full volumetric instrument.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Number of measured samples | 1 |
| Pretreatment temperature | Up to 400°C |
| Measurement range | 0.01 m2/g and above |
| Repeatability | within ±1.0% |
| Measurement time | Approx. 15 minutes (including calibration, excluding pretreatment time) |
| Dimensions (W x H x D) | 350 x 553 x 368 mm |
| Weight (main body) | 30 kg |
| Utility - Power | AC 100 - 120 V / AC 200 - 240 V, 400 W, 50 / 60 Hz |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
