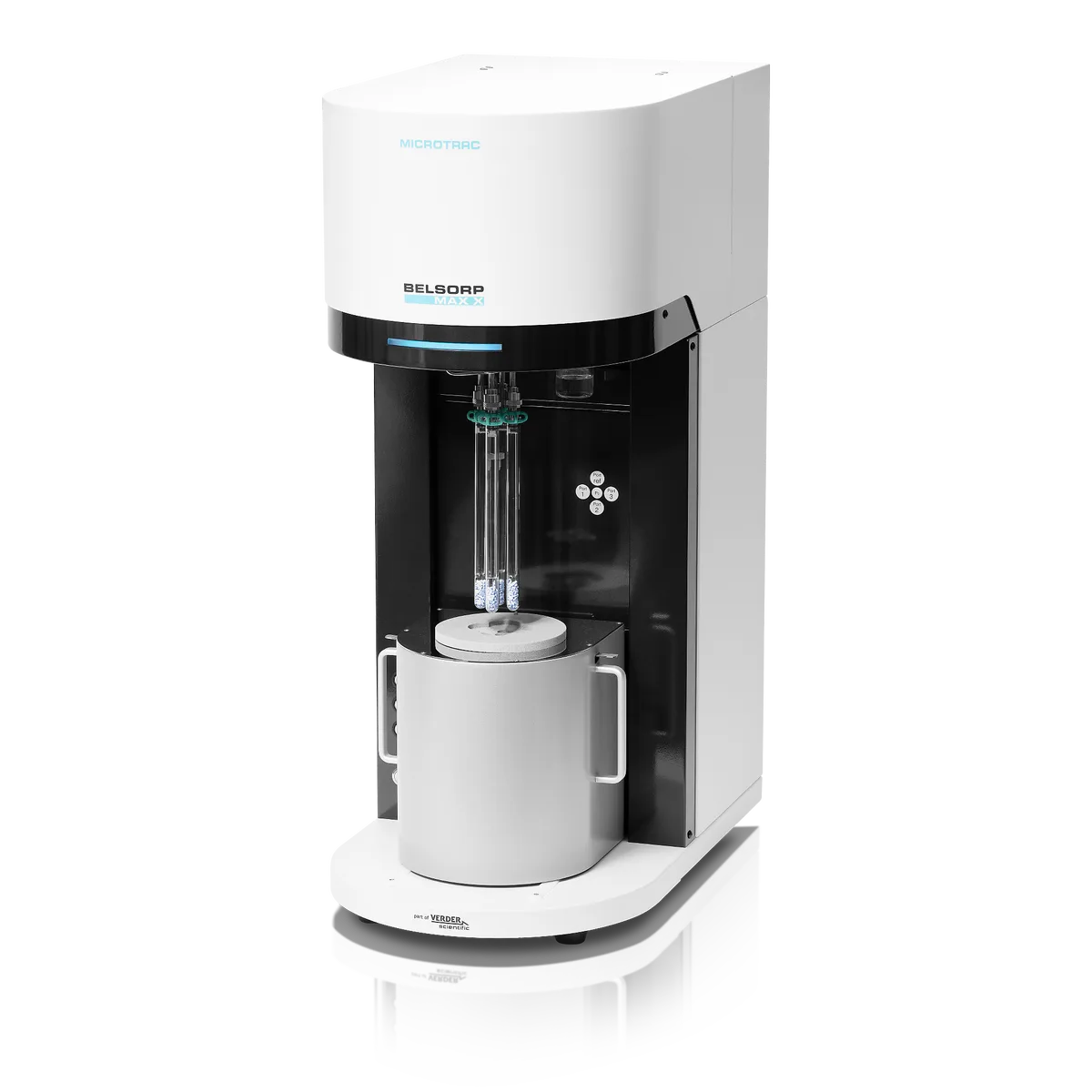

BELSORP MAX X: High-Precision Gas and Vapour Adsorption Analyser
Brand: Microtrac MRB | Category: Scientific & Laboratory Equipment
High precision adsorption analyser handling vapours as well as permanent gases, so water, organic solvent and other vapour isotherms can be measured alongside nitrogen. It is the research grade instrument in the BELSORP line, used for micropore analysis and adsorbent development.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Measurement principle | Manometric method (volumetric method) + AFSM™ or AFSM™2 |
| Gas ports | 3 ports (optional: up to 12 ports) |
| Number of measurements | MAX X: max. 4 ports simultaneously ; MAX X-HT: max. 4 ports simultaneously ; MAXX-HP: max. 3 ports simultaneously |
| Measurement range (specific surface) | 0.01 m2/g and above (N 2 ) ; 0.0005 m2/g and above (Kr) ; (depending on sample density) |
| Measurement range (pore size distribution) | 0.35 - 500 nm |
| Measurement range (gas adsorption isotherm) | MAX X: P/P0 = 10-8~~0.997 (N 2 @77.4K, Ar@87.3K) ; MAX X-HT: max. P/P0 = 10-6~~0.997 (N 2 @77.4K, Ar@87.3K) ; MAXX-HP: P/P0 = 10-8~~0.997 (N 2 @77.4K, Ar@87.3K) |
| Measurement range (vapor adsorption isotherm) | MAX X: P/P0 = ~0.95 @40°C ; MAX X-HT: P/P0 = ~0.95 @80°C ; MAXX-HP: P/P0 = ~0.95 @40°C |
| Measurement range (high pressure gas adsorption isotherm) | MAX X: - ; MAX X-HT: - ; MAXX-HP: 10Pa~900kPa |
| Pressure transducer (1MPa: 7500 Torr) | MAX X: - ; MAX X-HT: - ; MAXX-HP: 1 unit |
| Pressure transducer (133 kPa: 1000 Torr) | MAX X: 6 units ; MAX X-HT: 6 units ; MAXX-HP: 5 units |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Microtrac MRB equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
