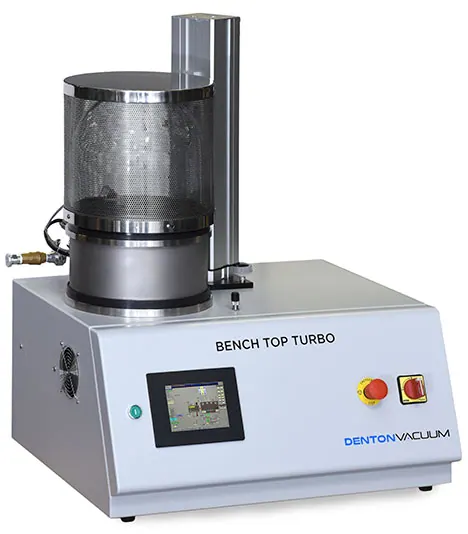

BenchTop Turbo
Brand: Denton Vacuum | Category: Nanotechnology
A compact high vacuum system for low voltage resistive thermal evaporation and sputtering, sized to fit within 32 inches of bench width. It is used for high vacuum carbon coating, high resolution microscopy coatings and rotary shadowing, and is run from a touch screen interface.
Technical Specifications
| Parameter | Value |
|---|---|
| Substrate size | up to 8 inches, 200 mm |
| Technologies | low voltage resistive thermal evaporation and sputtering |
| Sources | up to two, with optional co-deposition |
| Width | fits within 32 inches of bench space |
| Options | glow discharge for cleaning SEM samples and TEM grids in argon plasma |
| Applications | carbon coating, high resolution microscopy coatings, rotary shadowing, aperture cleaning |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Denton Vacuum equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
