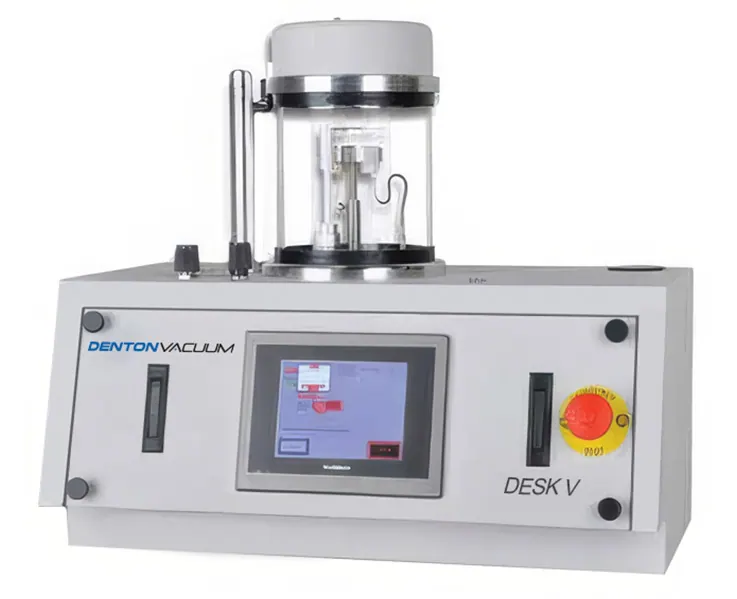

Desk V
Brand: Denton Vacuum | Category: Nanotechnology
A bench top sample preparation system that combines magnetron sputtering with thermal carbon evaporation for electron microscopy. An adjustable rotating and tilting stage gives even coverage on samples with irregular surfaces, and a broad range of coating materials including iridium can be deposited.
Technical Specifications
| Parameter | Value |
|---|---|
| Substrate size | up to 4 inches, 100 mm |
| Technologies | magnetron sputtering and thermal carbon evaporation from rods or yarn |
| Versions | Desk V HP and Desk V TSC turbo molecular pumped sputter coater |
| Stage | drop-in insulated rotating specimen table, adjustable rotation and tilt |
| Applications | SEM and TEM sample preparation, x-ray microanalysis sample preparation |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Denton Vacuum equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
