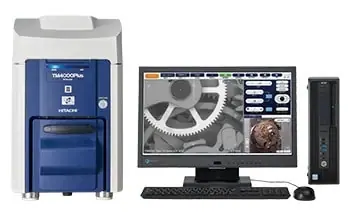

Tabletop Microscope TM4000PlusII/TM4000II
Brand: Hitachi High-Tech | Category: Scientific & Laboratory Equipment
The TM4000II and TM4000PlusII are benchtop scanning electron microscopes for fast imaging with little sample preparation. They take specimens up to 80 mm across using backscattered electron detection, with secondary electron and mixed signal modes on the Plus model.
Technical Specifications
| Parameter | Value |
|---|---|
| Magnification | 10x to 100,000x photographic |
| Accelerating voltage | 5 kV, 10 kV, 15 kV, 20 kV |
| Maximum sample size | 80 mm diameter, 50 mm thickness |
| Sample stage traverse | X 40 mm, Y 35 mm |
| Electron gun | pre-centred cartridge tungsten filament |
| Main unit | 330 x 614 x 547 mm, 54 kg |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Hitachi High-Tech equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
