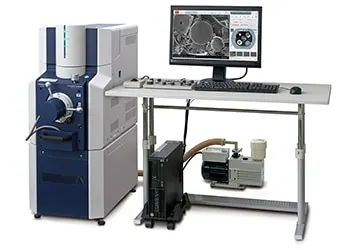

Scanning Electron Microscope FlexSEM 1000 II
Brand: Hitachi High-Tech | Category: Scientific & Laboratory Equipment
The FlexSEM 1000 II is a variable pressure scanning electron microscope with a tungsten filament source. It images uncoated and outgassing samples in a controlled pressure chamber, and supports energy dispersive X-ray analysis and STEM specimen holders.
Technical Specifications
| Parameter | Value |
|---|---|
| Secondary electron resolution | 4.0 nm at 20 kV, WD 5 mm, high vacuum mode |
| Backscattered electron resolution | 5.0 nm at 20 kV, WD 5 mm, VP mode |
| Accelerating voltage | 0.3 kV to 20 kV |
| Magnification | 6x to 300,000x image ratio |
| Variable pressure range | 6 to 100 Pa in 13 steps |
| Maximum observable range | 64 mm diameter combined with rotation |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Hitachi High-Tech equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
More from Electron Microscopy
- Scanning Electron Microscopes SU3800/SU3900
The SU3800 and SU3900 are variable pressure scanning electron microscopes with a five axis motorised stage and automated functions. The SU3900 carries a larger multipurpose chamber that takes specimens up to 300 mm diameter for bulky industrial samples.
- Tabletop Microscope TM4000PlusIII/TM4000III
The TM4000III and TM4000PlusIII are the newest benchtop scanning electron microscopes in the Hitachi TM range. They image conductive and non conductive samples using a charge up reduction mode, and take specimens up to 80 mm diameter and 50 mm thick.
- High Resolution Schottky Scanning Electron Microscope SU3900SE/SE Plus SU3800SE/SE Plus
The SE Series brings Schottky field emission performance to the SU3800 and SU3900 platforms. Four models cover standard and extra large chambers, with SE Plus versions adding deceleration mode and dedicated low energy secondary electron detection.
