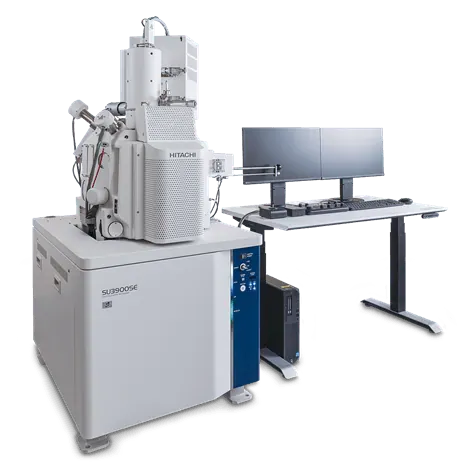

High Resolution Schottky Scanning Electron Microscope SU3900SE/SE Plus SU3800SE/SE Plus
Brand: Hitachi High-Tech | Category: Scientific & Laboratory Equipment
The SE Series brings Schottky field emission performance to the SU3800 and SU3900 platforms. Four models cover standard and extra large chambers, with SE Plus versions adding deceleration mode and dedicated low energy secondary electron detection.
Technical Specifications
| Parameter | Value |
|---|---|
| Secondary electron resolution | 0.9 nm at 30 kV |
| Secondary electron resolution | 1.6 nm at 1 kV with deceleration mode, SE Plus only |
| Magnification | 5x to 600,000x |
| Accelerating voltage | 0.5 kV to 30 kV |
| Probe current | maximum 150 nA |
| Mountable specimen size | 300 mm diameter and 130 mm high on SU3900SE |
