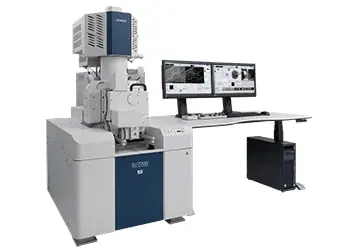

Ultrahigh-Resolution Schottky Scanning Electron Microscope SU7000
Brand: Hitachi High-Tech | Category: Scientific & Laboratory Equipment
The SU7000 is a Schottky field emission scanning electron microscope that collects several secondary and backscattered signals at once. Up to six channels can be displayed and stored together, and an optional variable pressure mode widens the range of samples.
Technical Specifications
| Parameter | Value |
|---|---|
| Secondary electron resolution | 0.8 nm at 15 kV, 0.9 nm at 1 kV |
| Magnification | 20x to 2,000,000x |
| Accelerating voltage | 0.1 kV to 30 kV in 0.01 kV steps |
| Probe current | maximum 200 nA |
| Variable pressure mode option | 5 to 300 Pa |
| Specimen size | maximum 200 mm diameter, 67 mm height |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Hitachi High-Tech equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
