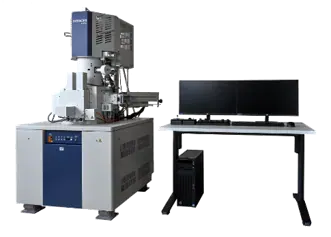

Ultrahigh-Resolution Schottky Scanning Electron Microscope SU8700
Brand: Hitachi High-Tech | Category: Scientific & Laboratory Equipment
The SU8700 is a Schottky field emission scanning electron microscope offering high probe current for fast microanalysis alongside ultrahigh resolution imaging. Low landing voltage operation without stage bias suits beam sensitive specimens.
Technical Specifications
| Parameter | Value |
|---|---|
| Secondary electron resolution | 0.6 nm at 15 kV, 0.8 nm at 1 kV, 0.9 nm at 0.3 kV |
| Magnification | 20x to 2,000,000x |
| Electron gun | Schottky emitter |
| Accelerating voltage | 0.1 kV to 30 kV |
| Landing voltage | 0.01 kV to 7 kV |
| Probe current | maximum 200 nA |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Hitachi High-Tech equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
