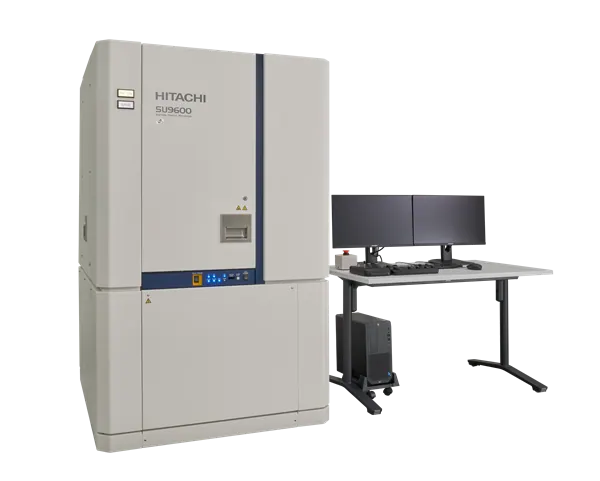

Ultrahigh-Resolution Scanning Electron Microscope SU9600
Brand: Hitachi High-Tech | Category: Scientific & Laboratory Equipment
The SU9600 is the flagship Hitachi cold field emission scanning electron microscope, built for subnanometre observation. An in lens objective and ExB detection give good signal to noise at low probe current, for semiconductor devices and advanced materials.
Technical Specifications
| Parameter | Value |
|---|---|
| Secondary electron resolution | 0.4 nm at 30 kV, 1.0 nm at 1 kV |
| Secondary electron resolution | 0.6 nm at 1 kV landing voltage |
| STEM image resolution | 0.34 nm at 30 kV lattice image |
| Accelerating voltage | 0.5 kV to 30 kV |
| Magnification | 80x to 3,000,000x |
| Maximum specimen size | 5.0 mm x 9.5 mm x 3.5 mm high |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Hitachi High-Tech equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
