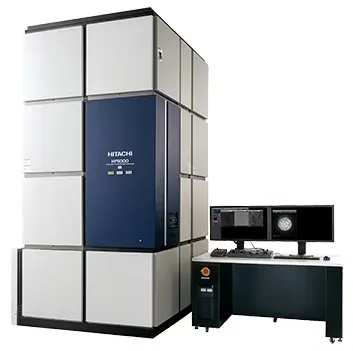

Field Emission Transmission Electron Microscope HF5000
Brand: Hitachi High-Tech | Category: Scientific & Laboratory Equipment
The HF5000 is a 200 kV aberration corrected TEM and STEM with a cold field emission source. A single objective lens configuration combines high specimen tilt with large solid angle EDX detection, for imaging and analysis at the atomic scale.
Technical Specifications
| Parameter | Value |
|---|---|
| Accelerating voltage | 200 kV and 60 kV |
| STEM resolution | 0.078 nm ADF-STEM image |
| TEM resolution | 0.102 nm lattice image |
| Magnification | STEM 20x to 8,000,000x, TEM 100x to 1,500,000x |
| Electron source | W(310) cold field emission |
| Specimen tilt | ±25° and ±35° with Hitachi double tilt holder |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Hitachi High-Tech equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
