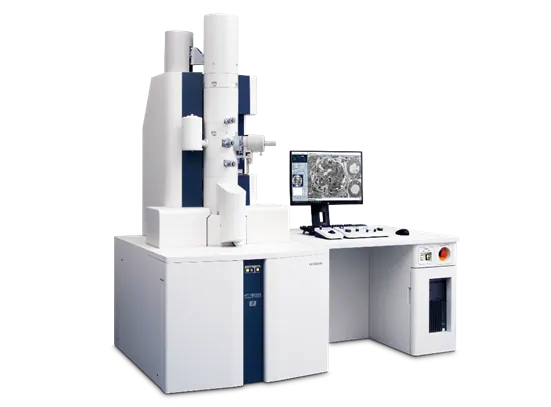

Transmission Electron Microscope HT7800 Series
Brand: Hitachi High-Tech | Category: Scientific & Laboratory Equipment
The HT7800 Series is a 120 kV transmission electron microscope that automates routine alignment and setting. Three models trade maximum magnification against stage tilt range, covering work from life science sectioning through to materials development.
Technical Specifications
| Parameter | Value |
|---|---|
| Accelerating voltage | 20 kV to 120 kV, variable in 100 V steps |
| Electron gun | W or LaB6 |
| Lattice resolution | 0.14 nm off axis at 120 kV on HT7820 and HT7830 |
| Maximum magnification | 600,000x HT7800II, 800,000x HT7820, 1,000,000x HT7830 |
| Stage maximum tilt angle | ±70° HT7800II, ±30° HT7820, ±10° HT7830 |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Hitachi High-Tech equipment requirements in Bangladesh.
