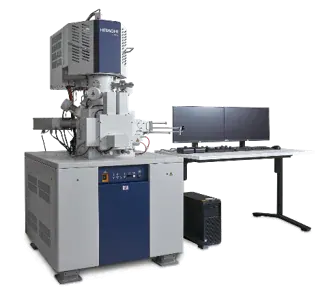

Ultrahigh-Resolution Scanning Electron Microscope SU8600
Brand: Hitachi High-Tech | Category: Scientific & Laboratory Equipment
The SU8600 is a cold field emission scanning electron microscope for ultrahigh resolution imaging. An upper detector with ExB filter mixes secondary and backscattered signals, and optional detectors add cathodoluminescence and STEM capability.
Technical Specifications
| Parameter | Value |
|---|---|
| Secondary electron resolution | 0.6 nm at 15 kV, 0.7 nm at 1 kV |
| Magnification | 20x to 2,000,000x |
| Electron gun | cold cathode field emission with anode heating system |
| Accelerating voltage | 0.5 kV to 30 kV |
| Landing voltage | 0.01 kV to 20 kV |
| Stage control | 5 axis motor drive |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Hitachi High-Tech equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
