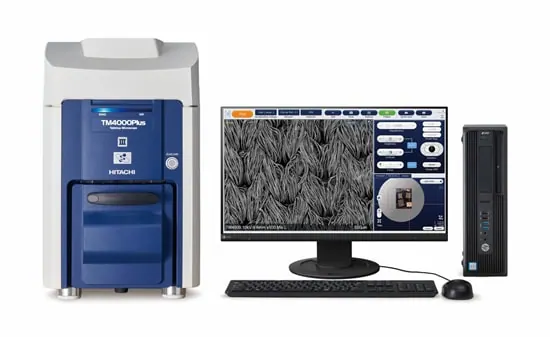

Tabletop Microscope TM4000PlusIII/TM4000III
Brand: Hitachi High-Tech | Category: Scientific & Laboratory Equipment
The TM4000III and TM4000PlusIII are the newest benchtop scanning electron microscopes in the Hitachi TM range. They image conductive and non conductive samples using a charge up reduction mode, and take specimens up to 80 mm diameter and 50 mm thick.
Technical Specifications
| Parameter | Value |
|---|---|
| Magnification | 10x to 100,000x photographic |
| Accelerating voltage | 5 kV, 10 kV, 15 kV, 20 kV |
| Maximum sample size | 80 mm diameter, 50 mm thickness |
| Vacuum modes | conductor, standard, charge up reduction |
| Sample stage traverse | X 40 mm, Y 35 mm |
| Main unit | 330 x 614 x 547 mm, 55 kg |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Hitachi High-Tech equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
