Capacitance
Brand: Lake Shore | Category: Nanotechnology

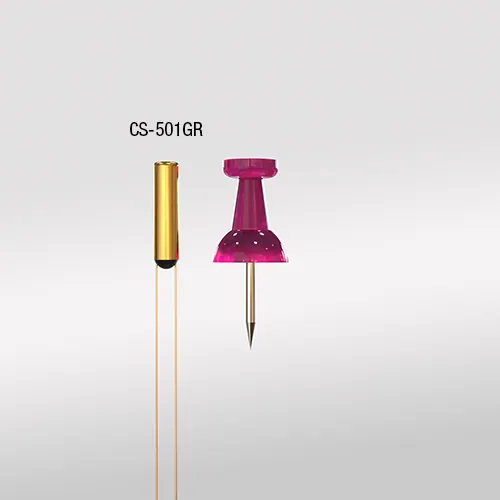

Capacitance sensors suit cryogenic temperature control in magnetic fields because they show virtually no field dependence. The CS-501GR operates from 1.4 K to 290 K in a package 3.0 mm across and 8.5 mm long. Leads are phosphor bronze with epoxy strain relief at the sensor.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | CS-501GR |
| Temperature range | 1.4 K to 290 K |
| Dimensions | 3.0 mm x 8.5 mm long |
| Mass | 260 mg |
| Lead type | 2 phosphor bronze with heavy build polyimide, attached with epoxy strain relief at sensor |
| Internal atmosphere | Air |
