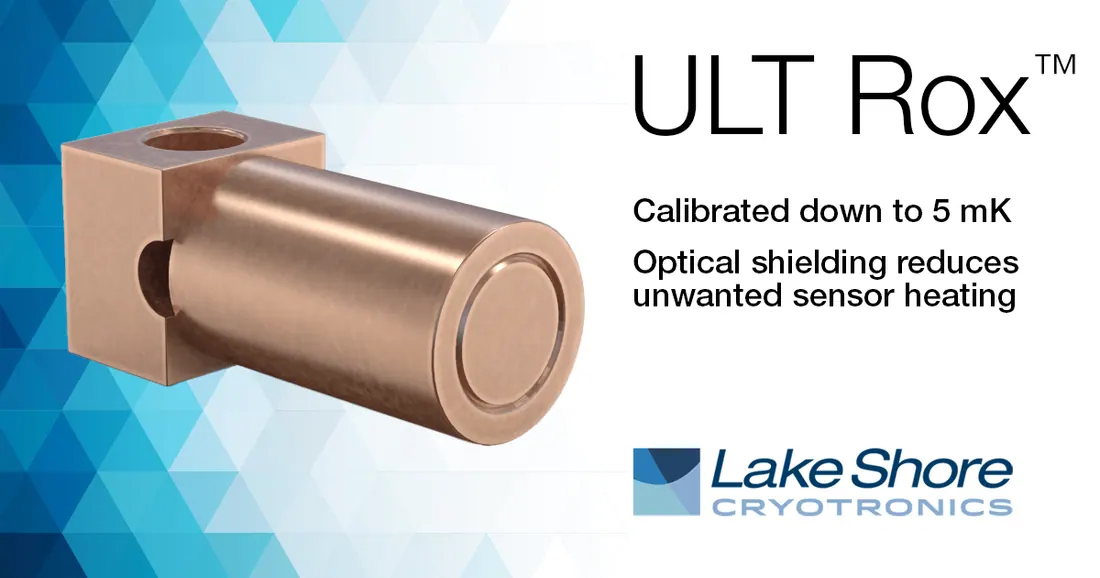

Ultra-Low Temperature Rox
Brand: Lake Shore | Category: Nanotechnology
Ultra-low temperature Rox sensors make precise measurements below 10 mK, which suits dilution refrigerator systems. The RX-102B-RS-0.01B covers 5 mK to 40 K with a resistance of 10 kilohms to 20 kilohms and typical accuracy of +/-1.2 mK at 5 mK. Mounting hardware is included.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range (RX-102B-RS-0.01B) | 5 mK to 40 K |
| Resistance range | 10 kΩ to 20 kΩ |
| Typical accuracy | +/-1.2 mK at 5 mK, +/-1 mK at 10 mK, +/-4 mK at 50 mK |
| Short-term stability | +/-15 mK at 4.2 K |
| Long-term stability | +/-30 mK/year at 4.2 K |
| Thermal response time | 0.5 s at 4.2 K |
