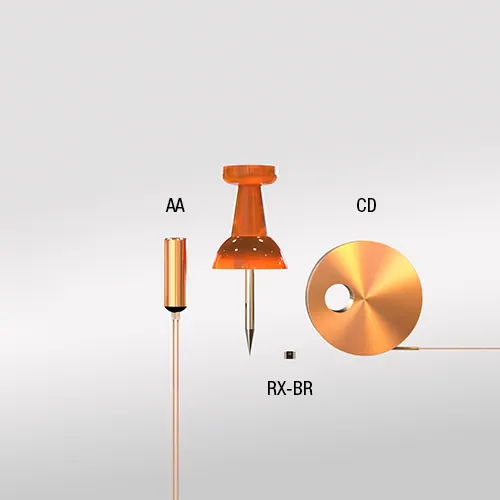

Interchangeable Rox
Brand: Lake Shore | Category: Nanotechnology
Interchangeable Rox sensors are ruthenium oxide thick-film resistors that adhere to a standard curve, so units can be swapped without individual calibration. RX-102A-AA and RX-202A-AA cover 0.05 K to 40 K and RX-103A-AA covers 1.4 K to 40 K. Typical accuracy at 4.2 K is +/-16 mK.
Technical Specifications
| Parameter | Value |
|---|---|
| Models | RX-102A-AA, RX-202A-AA, RX-103A-AA |
| Temperature range | 0.05 K to 40 K (RX-102A-AA and RX-202A-AA), 1.4 K to 40 K (RX-103A-AA) |
| Typical sensor accuracy at 1.4 K | +/-16 mK for all three models |
| Typical sensor accuracy at 4.2 K | +/-16 mK (RX-102A-AA, RX-202A-AA), +/-17 mK (RX-103A-AA) |
| Typical sensor accuracy at 10 K | +/-18 mK (RX-102A-AA, RX-202A-AA), +/-22 mK (RX-103A-AA) |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Lake Shore equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
