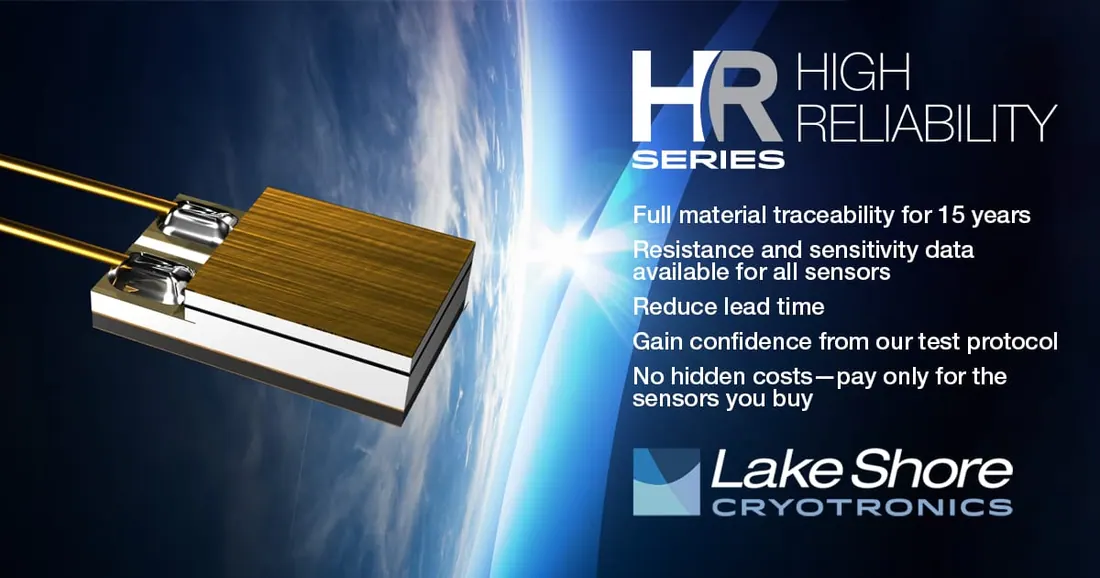

HR Series Sensors
Brand: Lake Shore | Category: Nanotechnology
HR Series cryogenic temperature sensors are tested for durability and precision, which suits mission-critical work. They come in SD and CU packages with a choice of lead options, including Quad-Lead and Quad-Twist wire. Resistance and sensitivity data are published from 20 K to 300 K.
Technical Specifications
| Parameter | Value |
|---|---|
| Packages | SD and CU |
| Wire options | no leads (bare gold bond pads); two gold-plated copper leads, 32 AWG, uninsulated; Quad-Lead, 36 AWG, polyimide insulation, ribbon wire; Quad-Twist, 36 AWG, polyimide insulation, two twisted pairs |
| Wire length | 32 mm (1.25 in) for CU leads, 2 m (79 in) or 5 m (197 in) for Quad-Lead and Quad-Twist |
| Resistance at 77.35 K | 700 Ω to 2,400 Ω |
| Resistance at 300 K | 120 Ω to 250 Ω |
| Sensitivity at 20 K | 260 Ω/K to 2,600 Ω/K |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Lake Shore equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
