Platinum
Brand: Lake Shore | Category: Nanotechnology

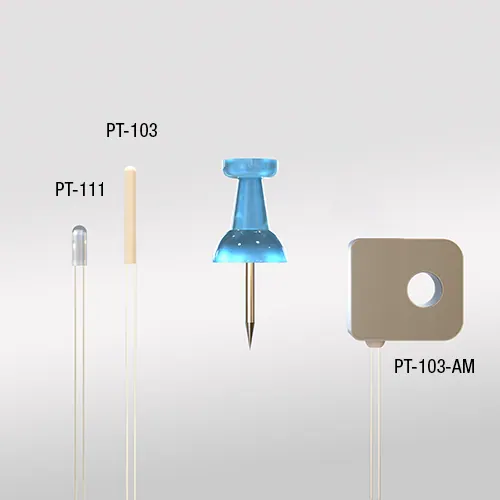

Platinum resistance thermometers follow the IEC 751 standard curve and serve as cryogenic temperature sensing and control elements. The PT-103 covers 14 K to 873 K and the PT-111 covers 14 K to 673 K, both at 1 mA recommended excitation. Short-term stability is +/-5 mK at 77 K.
Technical Specifications
| Parameter | Value |
|---|---|
| Models | PT-103, PT-111 |
| Temperature range | 14 K to 873 K (PT-103), 14 K to 673 K (PT-111) |
| Recommended excitation | 1 mA |
| Short-term stability | +/-5 mK at 77 K |
| Long-term stability | +/-10 mK at 77 K |
| Standard curve (model-dependent) | IEC 751 |
