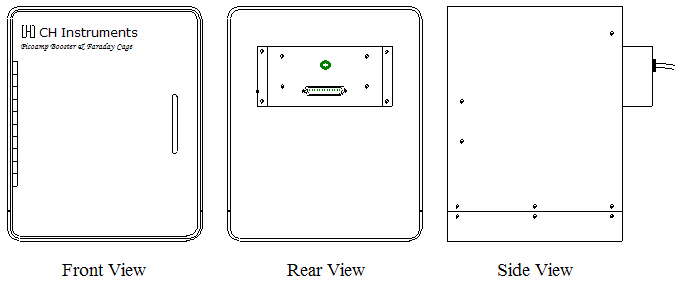

CHI200(B) Picoamp Booster and Faraday Cage
Brand: CH Instruments | Category: Nanotechnology
The CHI200(B) is a picoamp booster and Faraday cage that lets current down to a few picoamperes be measured. It places the preamplifier close to the electrode for lower bias current and noise, and the cage also suppresses mains frequency interference. Detection and switching are automatic.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Automatically enabled when the sensitivity scale is at or below 1e-8 A/V |
| Specification | CHI200B is compatible with the 600B/C/D/E, 700B/C/D/E and 800B/C/D series |
| Specification | CHI200 is compatible with the 600/A and 700/A series |
| Dimensions | 9.6 in W x 8.8 in D x 11.8 in H |
| Weight | 10 lb |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about CH Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
