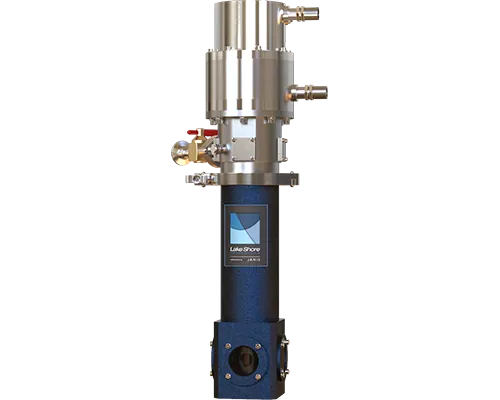

Cryogen-Free Vacuum Cryostats
Brand: Lake Shore | Category: Nanotechnology
These cryostats mount the sample in vacuum on a cold stage cooled by a closed-cycle refrigerator. Five models cover upper limits from 325 K to 800 K, including compact versions and optical variants. A wide range of electrical feedthrough and window options is offered.
Technical Specifications
| Parameter | Value |
|---|---|
| Models | CCS-100, CCS-300S, CCS-300ST, CCS-400, CCS-400H |
| Temperature range | <4 K to 325 K (CCS-100, CCS-300S, CCS-300ST), <4 K to 500 K (CCS-400), <5 K to 800 K (CCS-400H) |
| Typical temperature stability | +/-50 mK |
| Sample environment | Vacuum |
| Sample type | Conductive, solid |
| Cooldown | 1 h to 2 h (CCS-100), 1.5 h to 2.5 h (CCS-300S, CCS-300ST), 1.5 h to 3 h (CCS-400), 2 h to 2.5 h (CCS-400H) |
