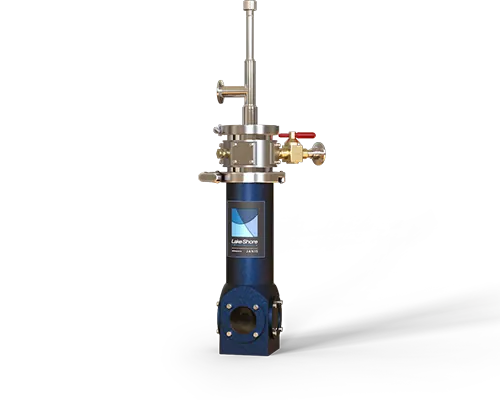

SuperTran Series Continuous Flow Cryostats
Brand: Lake Shore | Category: Nanotechnology
SuperTran Series continuous flow cryostats cool a sample in vacuum by drawing liquid helium or liquid nitrogen from a storage dewar through a transfer line. Cooldown to 5 K takes about 15 minutes and helium use is 0.6 L/h at 5 K. Models cover operation from 2 K up to 800 K.
Technical Specifications
| Parameter | Value |
|---|---|
| Models | ST-100, ST-100-H, ST-300, ST-300-C, ST-400, ST-400-H, ST-500, ST-500-C, ST-500-LGV |
| Temperature range | 2 K to 500 K (ST-100), 2 K to 800 K (ST-100-H) |
| Temperature range | approximately 2 K to 420 K (ST-300 and ST-300-C) |
| Temperature range | 3.5 K to 475 K (ST-500 and ST-500-LGV), 6 K to 475 K (ST-500-C) |
| Cooldown | 15 min (to 5 K) |
| Cryogen consumption (LHe at 5 K) | 0.6 L/h |
