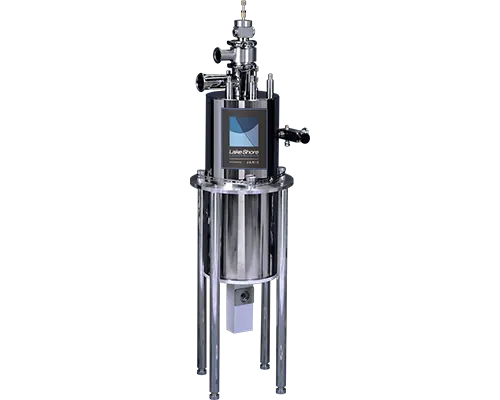

SuperVariTemp Cryostats
Brand: Lake Shore | Category: Nanotechnology
SVT Series SuperVariTemp cryostats are helium-cooled reservoir cryostats in which the sample sits in flowing vapour inside a sample tube. They reach below 2 K and hold temperature to about +/-50 mK, and can also be run on liquid nitrogen. Optical and Mossbauer versions are available.
Technical Specifications
| Parameter | Value |
|---|---|
| Models | SVT-100, SVT-400, SVT-400-MOSS |
| Cooling type | LHe or LN2 |
| Temperature range | <2 K to 325 K |
| Typical temperature stability | +/-50 mK |
| Sample tube size | up to 63.5 mm (2.5 in), or 31.8 mm (1.25 in) |
| Height (approximate) | 1143 mm (45 in) |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Lake Shore equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
