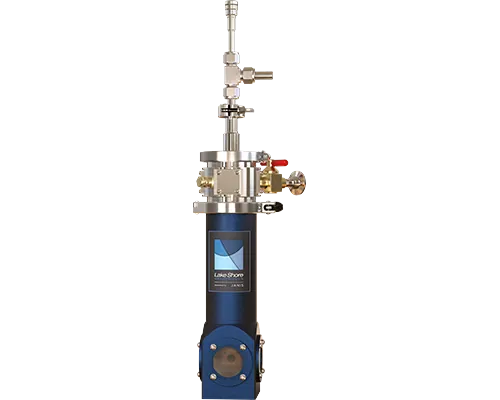

VPF-100 Series Cryostats
Brand: Lake Shore | Category: Nanotechnology
VPF-100 Series cryostats hold the sample in vacuum on a stage cooled by liquid nitrogen, and are rated for high temperature work, with the VPF-100-H reaching 800 K. Hold time at 77 K is 8 hours for the VPF-100. Optical access is available on both models.
Technical Specifications
| Parameter | Value |
|---|---|
| Models | VPF-100, VPF-100-H |
| Cooling type | LN2 |
| Temperature range | 65 K to 500 K (VPF-100), 65 K to 800 K (VPF-100-H) |
| Typical temperature stability | +/-50 mK |
| LN2 hold time (77 K) | 8 h (VPF-100), 5 h (VPF-100-H) |
| Inner diameter (at sample region) | 76.2 mm (3 in) for VPF-100, 63.5 mm (2.5 in) for VPF-100-H |
