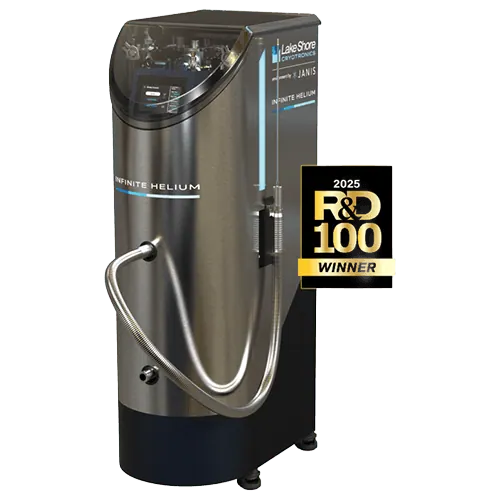

Infinite Helium
Brand: Lake Shore | Category: Nanotechnology
Infinite Helium is an automated system that lets a liquid helium cryostat run cryogen-free by recycling the helium in a closed loop. It gives continuous cooling below 2.2 K without helium replenishment, with a continuous run time of six months. A low-vibration option is available.
Technical Specifications
| Parameter | Value |
|---|---|
| Continuous run time | 6 months |
| Low-vibration option, vibration measured at 1 to 5000 Hz at base temperature | X 1.54 nm RMS, Y 1.97 nm RMS, Z 0.62 nm RMS |
| System dimensions | 508 mm (w) x 889 mm (l) x 1575 mm (h) (20 in x 35 in x 62 in) |
| Weight (approximate) | 182 kg (400 lb); 236 kg (520 lb) with low-vibration option |
| Cooling water requirements | 6 to 9 L/min at 5 to 25 °C |
| Certifications | CE, NRTL |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Lake Shore equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
