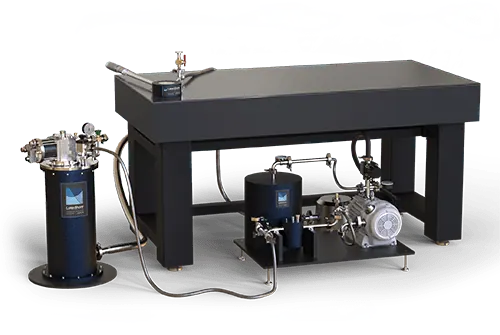

RGC Helium Recirculating Gas Coolers
Brand: Lake Shore | Category: Nanotechnology
RGC recirculating gas coolers run a liquid helium cryostat cryogen-free by recycling helium gas through a cryocooler in a closed loop. Base temperature is below 4.3 K with ST-100 and ST-300 cryostats. The gas handling system and cryocooler are supplied as separate units.
Technical Specifications
| Parameter | Value |
|---|---|
| RGC4-10 with ST-100 and ST-300 | <4.3 K |
| RGC4-10 with ST-400 | <4.0 K (120 mW at 5 K) |
| RGC4-10 with ST-500 | <4.2 K (100 mW at 5 K) |
| RGC4-10 with STVP | <10 K |
| RGC cryocooler dimensions | 457 mm (18 in) base diameter x 787 mm (31 in) tall |
| Gas handling system weight (approximate) | 56.7 kg (125 lb) |
