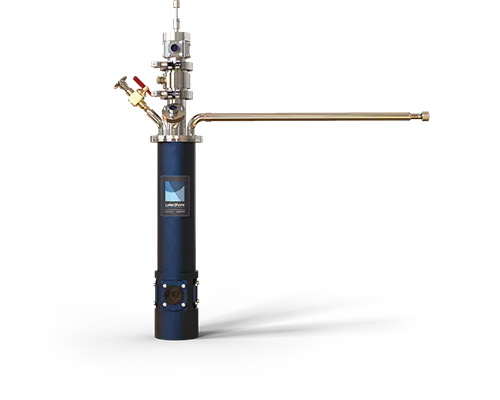

SuperTran-VP Continuous Flow Cryostats
Brand: Lake Shore | Category: Nanotechnology
SuperTran-VP cryostats cool the sample by immersing it in a temperature-controlled flowing vapour drawn from a liquid helium or liquid nitrogen supply. Base temperature is below 2 K and helium use is 1.3 L/h at 5 K. The sample region is 38.1 mm across and the sample can be rotated.
Technical Specifications
| Parameter | Value |
|---|---|
| Models | STVP-100, STVP-100-TH, STVP-NMR |
| Temperature range (STVP-100) | <2 K to 325 K (LHe); 65 K to 325 K (LN2) |
| Temperature range (STVP-100-TH) | <2 K to 420 K (LHe); 65 K to 420 K (LN2) |
| Cooldown | 30 min (to 5 K) |
| Inner space (at sample region) | 38.1 mm (1.5 in) |
| Cryogen consumption (LHe at 5 K) | 1.3 L/h |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Lake Shore equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
More from Cryogenics & Temperature Control
- SuperVariTemp Cryostats
SVT Series SuperVariTemp cryostats are helium-cooled reservoir cryostats in which the sample sits in flowing vapour inside a sample tube. They reach below 2 K and hold temperature to about +/-50 mK, and can also be run on liquid nitrogen. Optical and Mossbauer versions are available.
- SuperTran Series Continuous Flow Cryostats
SuperTran Series continuous flow cryostats cool a sample in vacuum by drawing liquid helium or liquid nitrogen from a storage dewar through a transfer line. Cooldown to 5 K takes about 15 minutes and helium use is 0.6 L/h at 5 K. Models cover operation from 2 K up to 800 K.
- VNF-100 Series Cryostats
VNF-100 Series cryostats cool the sample in flowing nitrogen vapour, which suits liquids, powders and other samples that are hard to anchor thermally. They run from 65 K upwards, hold 1.2 L of liquid nitrogen and give 6 to 8 hours of working time per fill.
