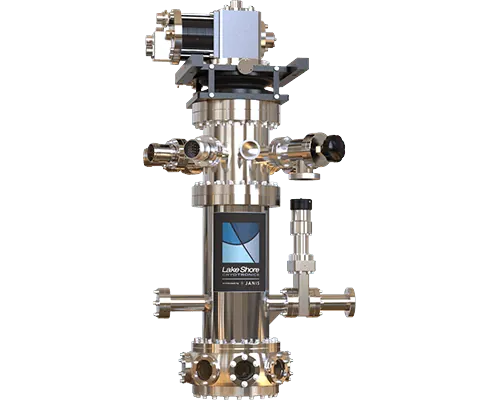

Cryogen-Free Vibration-Isolated and UHV Cryostats
Brand: Lake Shore | Category: Nanotechnology
The CCS-XG closed-cycle cryostats reach below 4 K with sample vibration held to 40 nm, avoiding the movement usually associated with cryogen-free cooling. The CCS-XG-UHV version is built for ultra-high vacuum work and can be baked at 200 °C with the cold head removed.
Technical Specifications
| Parameter | Value |
|---|---|
| Models | CCS-XG, CCS-XG-UHV |
| Temperature range | <4 K to 325 K |
| Vibration | 40 nm |
| Sample environment | Vacuum |
| Baking temperature with cold head removed | 200 °C (CCS-XG-UHV) |
| Cooldown | 2 h to 3 h, depending on radiation shield configuration |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Lake Shore equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
