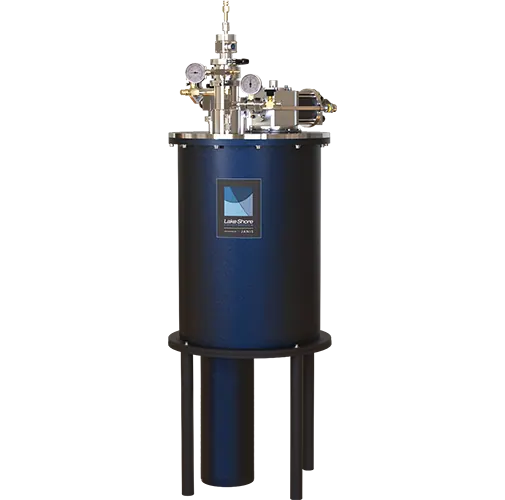

Cryogen-Free Continuous Low Temp Cryostats
Brand: Lake Shore | Category: Nanotechnology
The SHI-950-LT cryostats use a closed-cycle refrigerator to cool samples in exchange gas to 1.5 K without liquid cryogens. An optional helium-3 insert takes the base temperature to 300 mK, and the upper limit is 800 K. Optical and non-optical versions are available.
Technical Specifications
| Parameter | Value |
|---|---|
| Models | SHI-950-LT, SHI-950T-LT |
| Temperature range | 1.5 K (300 mK with optional He-3 insert) to 800 K |
| Typical temperature stability | +/-50 mK |
| Sample environment | Exchange gas |
| Sample tube size | 51 mm (2 in) |
| Cooldown | 9 h (SHI-950-LT), 8 h to 9 h (SHI-950T-LT) |
