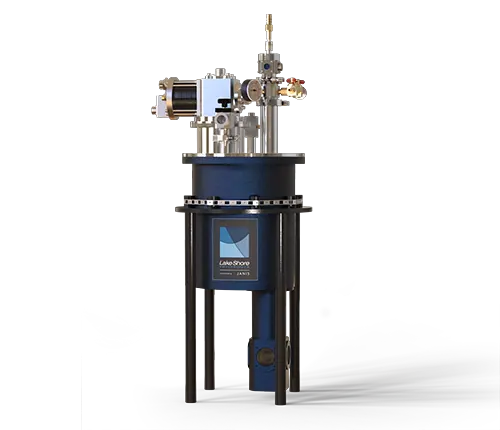

Cryogen-Free Exchange Gas Cryostats
Brand: Lake Shore | Category: Nanotechnology
These cryostats cool the sample in exchange gas using a closed-cycle refrigerator, so no liquid cryogen is needed. Samples may be solid, liquid or powder, conductive or non-conductive, and are changed in under 10 minutes. A wide choice of feedthrough and window options is offered.
Technical Specifications
| Parameter | Value |
|---|---|
| Models | CCS-900, CCS-900-T |
| Temperature range | <4 K to 800 K |
| Typical temperature stability | +/-50 mK |
| Sample environment | Exchange gas |
| Sample tube size | 38.1 mm (1.5 in) for CCS-900; 28.6 mm (1.125 in), 38.1 mm (1.5 in) or 60.3 mm (2.375 in) for CCS-900-T |
| Cooldown | 3 h to 3.5 h (CCS-900), 3 h to 4 h (CCS-900-T) |
