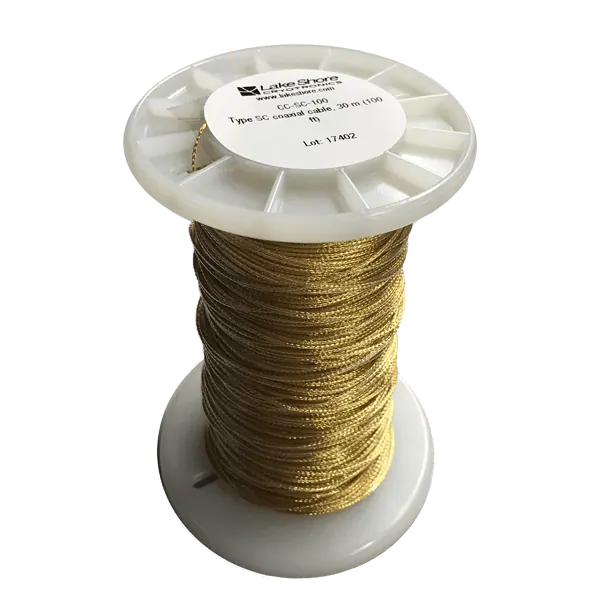

Cryogenic Cable
Brand: Lake Shore | Category: Nanotechnology
Lake Shore cryogenic coaxial cable carries high-frequency signals into a cryostat with low heat leak. Type SC uses a stranded copper centre conductor, Type SS uses 304 stainless steel and Type SR is semi-rigid carbon steel. Characteristic impedance is 35, 40 or 50 ohms by type.
Technical Specifications
| Parameter | Value |
|---|---|
| Types | SC, SS, SR |
| Center conductor | 32 AWG (0.2032 mm) for SC and SS, 37 AWG (0.1143 mm) for SR |
| Temperature range | <1 K to 400 K (SC), 10 mK to 473 K (SS), 10 mK to 400 K (SR) |
| Characteristic impedance | 35 Ω at 10 MHz (SC), 40 Ω at 10 MHz (SS), 50 Ω (+/-2 Ω) for SR |
| Center conductor maximum DC voltage | 600 V (SC and SS), 700 V (SR) |
| Center conductor maximum DC current | 200 mA |
