CT TE
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging

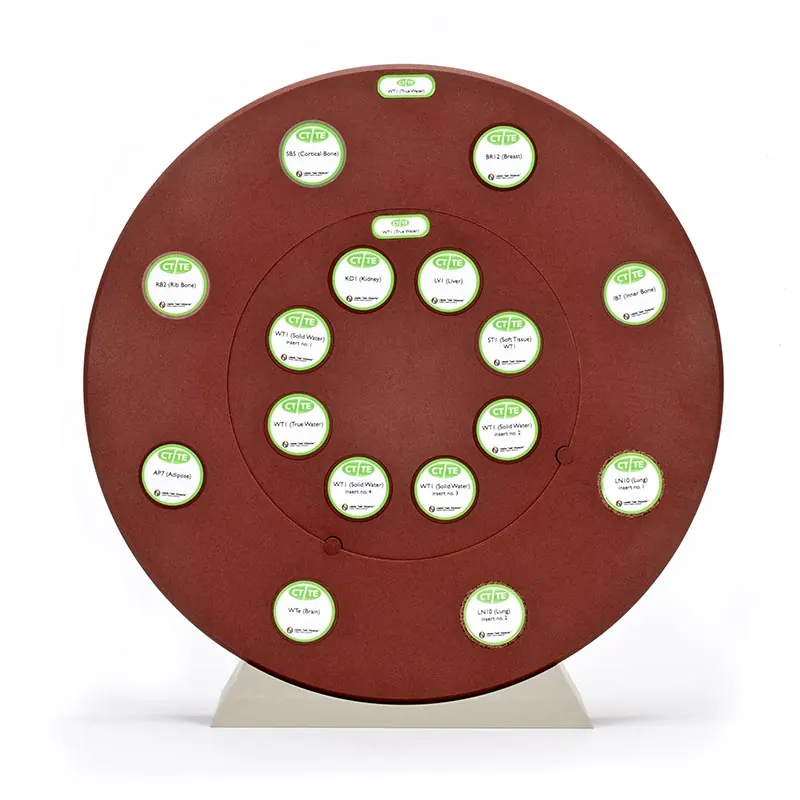

A tissue equivalent CT phantom made up of a water equivalent nested head and body section, each drilled with eight holes for interchangeable tissue equivalent inserts. It is suitable for both kV and MV energies, so it can be used for diagnostic CT and for radiotherapy planning checks.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Nested water equivalent head and body phantom |
| Specification | 8 insert holes in each section |
| Insert materials | water equivalent WT1, adipose AP7, breast BR12, hard cortical bone SB5, inner bone IB7, rib or average bone RB2, lung LN10, kidney KD1, liver LV1, brain Wte |
| Specification | Suitable for both kV and MV energies |
| Specification | Other insert materials available on request |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
