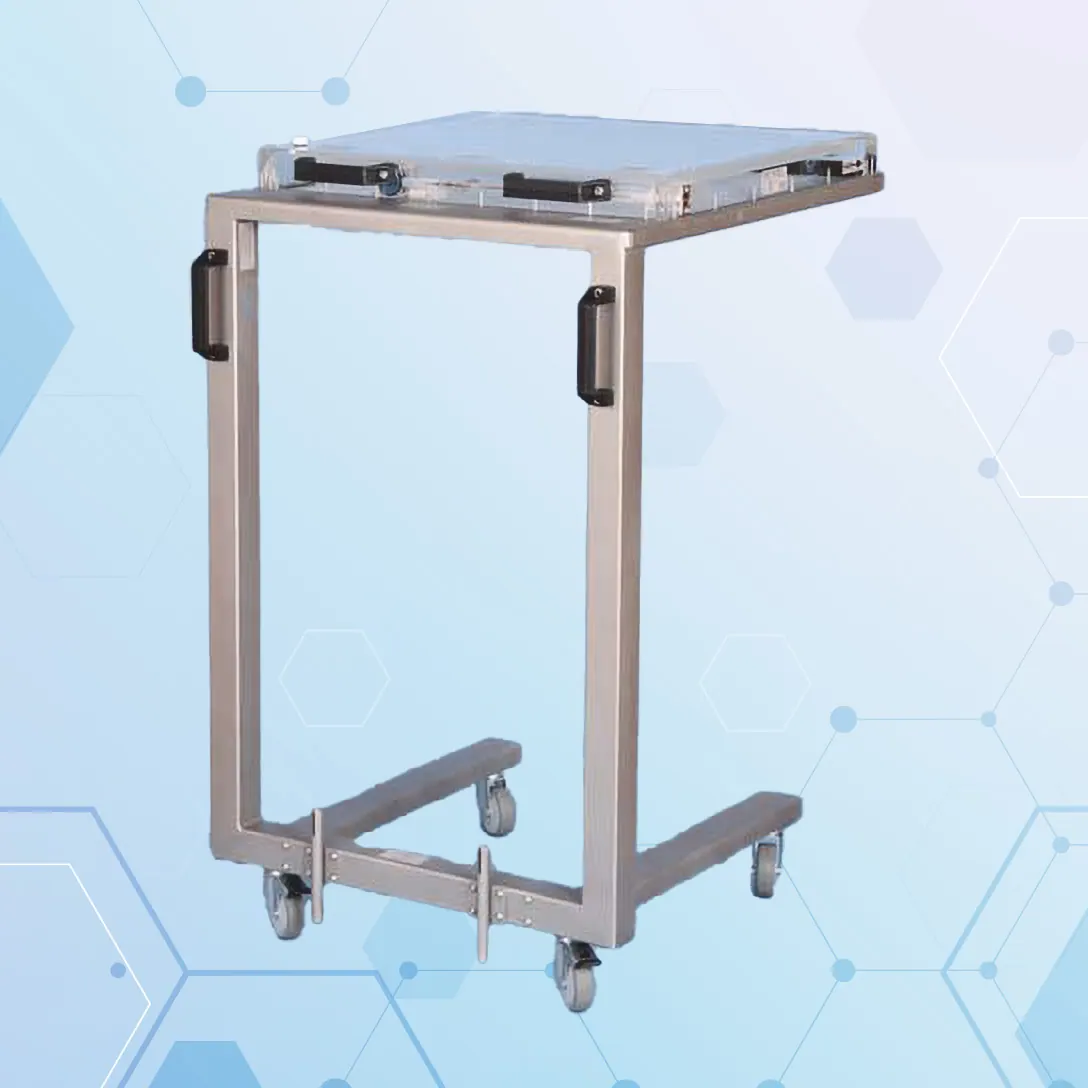

Fillable flood phantom
Brand: MiE GmbH | Category: Nuclear Medicine & Imaging
A refillable flood phantom for quality assurance of gamma camera homogeneity. An integrated circulation pump mixes the filling completely, the design gives a bubble free field of view, and the composite construction stops the measuring surfaces deforming. It is filled with distilled water.
Technical Specifications
| Parameter | Value |
|---|---|
| Effective field of view | 400 mm x 540 mm |
| Dimension of the cuvette | 545 mm x 630 mm x 80 mm |
| Filling quantity | approx. 12 litres |
| Empty weight | approx. 21 kg |
| Material in measuring range | 2 x 20 mm acrylic glass or glass |
| Operating temperature | 15 °C to 25 °C |
