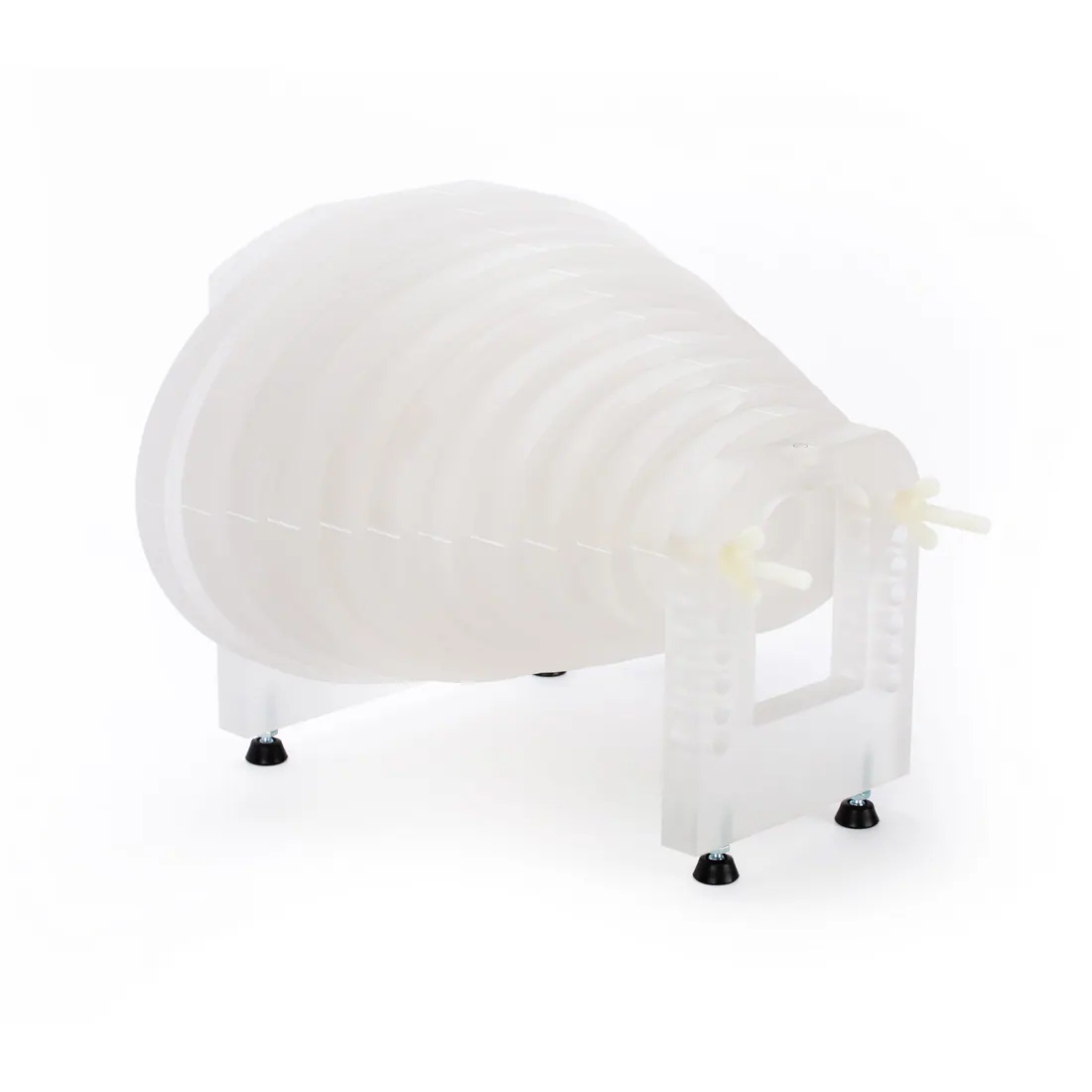

CTAEC-25
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
A CT automatic exposure control phantom built from eleven reconfigurable PMMA ellipses of 25 mm thickness. The stack simulates a changing patient cross section along the scan so the constancy of the AEC can be checked, and each step accepts dosimetry or image quality inserts.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | 11 PMMA ellipses of 25 mm thickness, different heights and widths, reconfigurable in any order |
| Specification | 2 end plates with integral carry handles and adjustable height and length nylon supports |
| Specification | Spirit level and pigment filled centre markings |
| Specification | Central hole in each step takes blank inserts, pencil ion chamber tubes, or SedentexCT IQ image quality inserts |
| Specification | Supplied in a wheeled protective storm case with telescopic handle |
| Specification | Free software included |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
