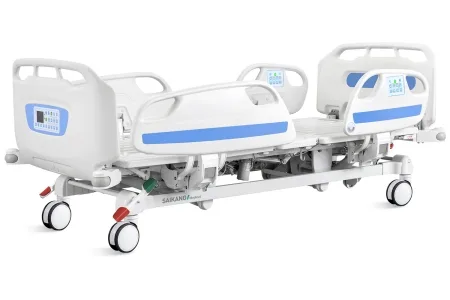

D8d-CPR Multifunctional Electric ICU Bed (SKD-C)
Brand: Saikang Medical | Category: Medical Equipment
This is the CPR equipped version of the D8d, adding manual CPR, a one button stop, one button Trendelenburg and a nurse lock system. PP side rails carry an integrated control panel and the PP bed ends carry an integrated LCD control panel. Four 85mm wall bumper wheels protect the bed and the ward, and the frame is welded by Panasonic robots to EN60601.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| External size (LxW) | 2280x1090 mm |
| Safe working load | 250 kg |
| Height adjustment | 435-725±10 mm |
| Back-rest adjustment | 0-75°(±10°) |
| Knee-rest adjustment | 0-35°(±10°) |
| Voltage and frequency | 100-240V·50/60Hz |
Selected dimensions and operating data from the exact model’s manufacturer page. Confirm the safe working load, accessories, electrical configuration and current instructions for use before purchase. Listed adjustment ranges do not establish suitability for an individual patient. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Care setting, patient needs and model-specific safe working load
- Required movements, mattress/platform dimensions, rails and accessories
- Ward access, cleaning, electrical requirements and maintenance support
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
