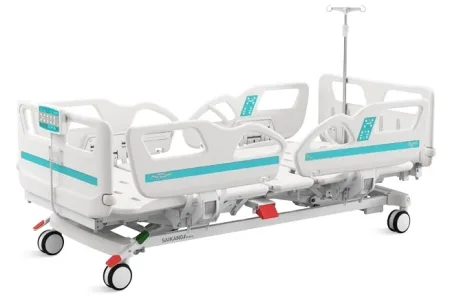

V8v Electric Hospital Bed (SKD-C)
Brand: Saikang Medical | Category: Medical Equipment
A LINAK driven intensive care bed on 6 inch double side Secure castors with central locking, giving height travel from 420mm to 870mm. Both electric and manual CPR are provided, along with a cardiac chair position, automatic braking at 30 degrees, an emergency stop button and a night light. The PP platform has an integrated mattress retainer and the backrest carries a cassette holder.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| External size (LxW) | 2085x1025mm±10mm |
| Mattress platform | 1925x900mm±10mm |
| Safe working load | 250kg |
| Height adjustment | 420-870mm±10mm |
| Back-rest adjustment | 0-75°(±10°) |
| Knee-rest adjustment | 0-28°(±10°) |
| Reverse trendelenburg | 0-17°(±2°) |
| Trendelenburg | 0-17°(±2°) |
| Angle indicator | 0-90° |
| Auto-regression | 67+47mm |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
