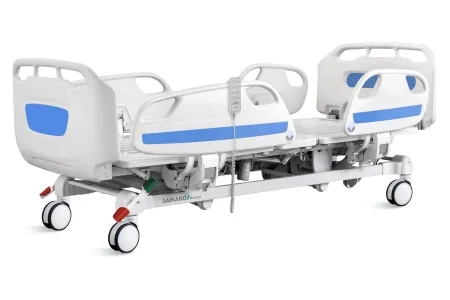

D8d Electric Bed
Brand: Saikang Medical | Category: Medical Equipment
An ICU bed built on a solid base made from 5.0mm stamped rotating plate and finished in environmental plastic that can be sterilised at 100°C with tensile strength up to 30MPa. Four linear motors handle backrest, knee rest, height and tilt, and the bed follows the EN60601 safety standard. Angle indicators for backrest and Trendelenburg position are fitted at four points.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| External size(LxW) | 2280x1090 mm |
| Mattress platform | 1925×900±10 mm |
| Safe working load | 250 kg |
| Height adjustment | 435-725mm±10 mm |
| Back-rest adjustment | 0-75°(±10°) |
| Knee-rest adjustment | 0-35°(±10°) |
| Reverse Trendelenburg | 0-12°(±2°) |
| Trendelenburg | 0-12°(±2°) |
| Angle indicator | 0-90° |
| Voltage and frequency | 100-240V·50/60Hz |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Care setting, patient needs and model-specific safe working load
- Required movements, mattress/platform dimensions, rails and accessories
- Ward access, cleaning, electrical requirements and maintenance support
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
