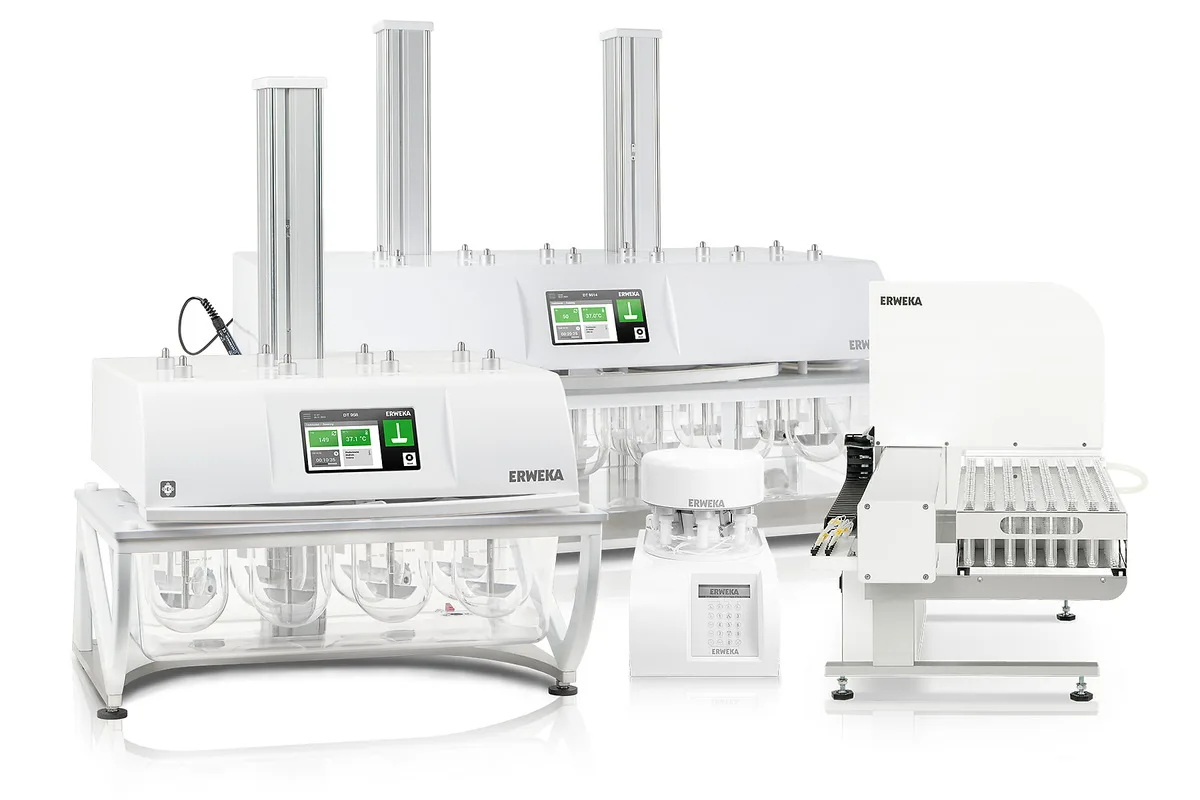

Digital Dissolution Offline System, DT 950 and DT 9510 Series
Brand: Erweka | Category: Scientific & Laboratory Equipment
This offline system extends the DT 950 and DT 9510 series with the first step in dissolution automation: fully automated sampling and storage in vials for separate analysis. The updated TestAssist lets the operator configure and start dissolution tests with automatic sampling from the 7 inch touch display, guiding the user through the test in a few steps for 100 % USP / EP / JP compliant work. User management configures individual rights, so functions can be restricted to administrators, operators and service technicians. Erweka describe it as their most advanced stand alone dissolution system and an easy entry point into dissolution automation.
Model specifications
Compare the named models or configurations. Confirm options and included accessories in your quotation.
| Base dissolution tester | DT 950 series | DT 9510 series |
|---|---|---|
| Weight | 42 kg | 110 kg |
| Dimensions (H x W x D) | 850 x 650 x 650 mm | 850 x 1062 x 650 mm |
| Speed | 20-250 U/min | 20-250 U/min |
| Vessel volume | 400 ml / 1000 ml / 2000 ml | 400 ml / 1000 ml / 2000 ml |
| Interfaces | 1x RS-232, 2x USB, 2x Ethernet/RJ45 | 1x RS-232, 2x USB, 2x Ethernet/RJ45 |
| Test-station options | 6, 7 or 8; select DT 956, DT 957 or DT 958 | 12, 13 or 14; select DT 9512, DT 9513 or DT 9514 |
Manufacturer catalogue checked 2026-09-29.
This table describes the base dissolution tester only, not the assembled online/offline system. Pump, sample collector, UV-Vis or HPLC interfaces, filters and software must be matched to the selected workflow. Overall system dimensions, weight and method validation are configuration-specific.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Test method, dosage form and required throughput
- Exact model configuration, measuring range and method-specific accessories
- Data handling, qualification/calibration documents and operator training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Erweka equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
