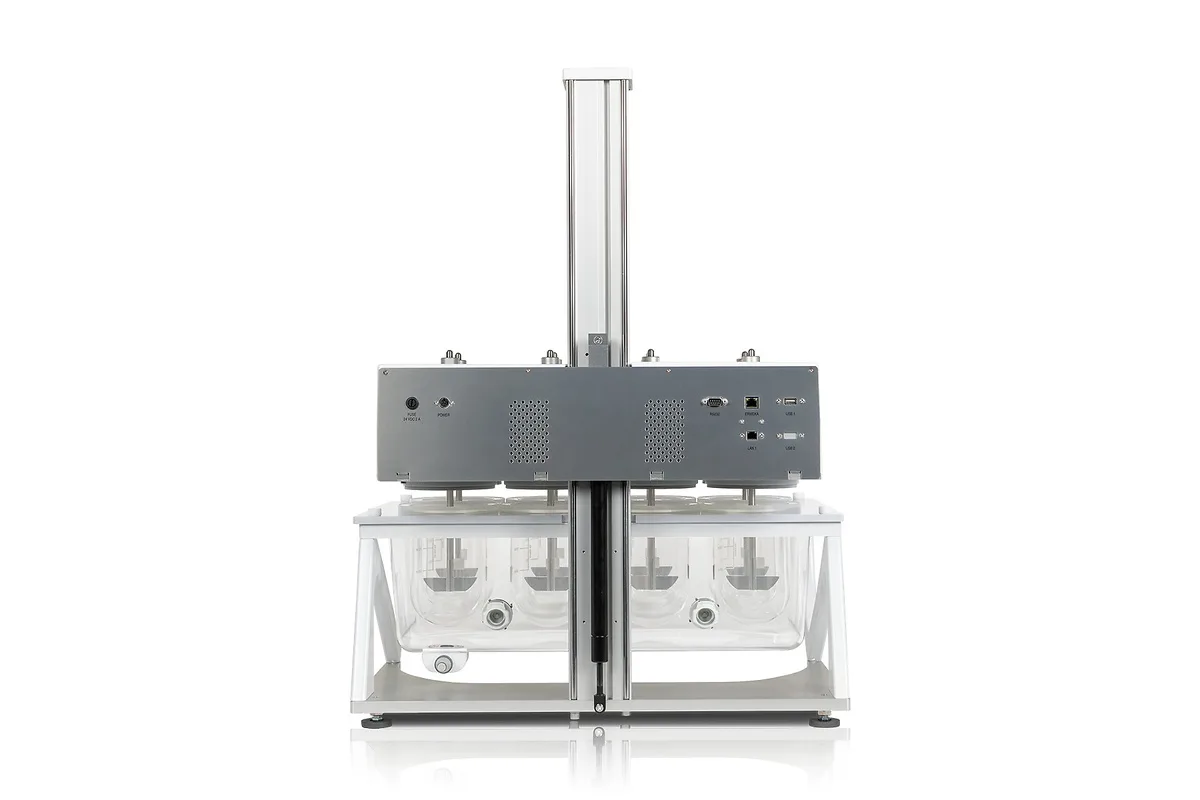

Dissolution On-/Offline System with UV-Vis
Brand: Erweka | Category: Scientific & Laboratory Equipment
A semi automated dissolution system with connected UV-Vis measurement and sample collection, controlled by Disso.NET. Erweka present it as the ideal configuration for spectrophotometers: the attached PC runs the whole system through the Disso.NET software, which also gives full control over all components. Once analysis finishes, samples are stored using Erweka's own FRL 6/7/854 sample collector.
Model specifications
Compare the named models or configurations. Confirm options and included accessories in your quotation.
| Base dissolution tester | DT 950 series | DT 9510 series |
|---|---|---|
| Weight | 42 kg | 110 kg |
| Dimensions (H x W x D) | 850 x 650 x 650 mm | 850 x 1062 x 650 mm |
| Speed | 20-250 U/min | 20-250 U/min |
| Vessel volume | 400 ml / 1000 ml / 2000 ml | 400 ml / 1000 ml / 2000 ml |
| Interfaces | 1x RS-232, 2x USB, 2x Ethernet/RJ45 | 1x RS-232, 2x USB, 2x Ethernet/RJ45 |
| Test-station options | 6, 7 or 8; select DT 956, DT 957 or DT 958 | 12, 13 or 14; select DT 9512, DT 9513 or DT 9514 |
Manufacturer catalogue checked 2026-09-29.
This table describes the base dissolution tester only, not the assembled online/offline system. Pump, sample collector, UV-Vis or HPLC interfaces, filters and software must be matched to the selected workflow. Overall system dimensions, weight and method validation are configuration-specific.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Test method, dosage form and required throughput
- Exact model configuration, measuring range and method-specific accessories
- Data handling, qualification/calibration documents and operator training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Erweka equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
