Dissolution Online System UV-Vis
Brand: Erweka | Category: Scientific & Laboratory Equipment

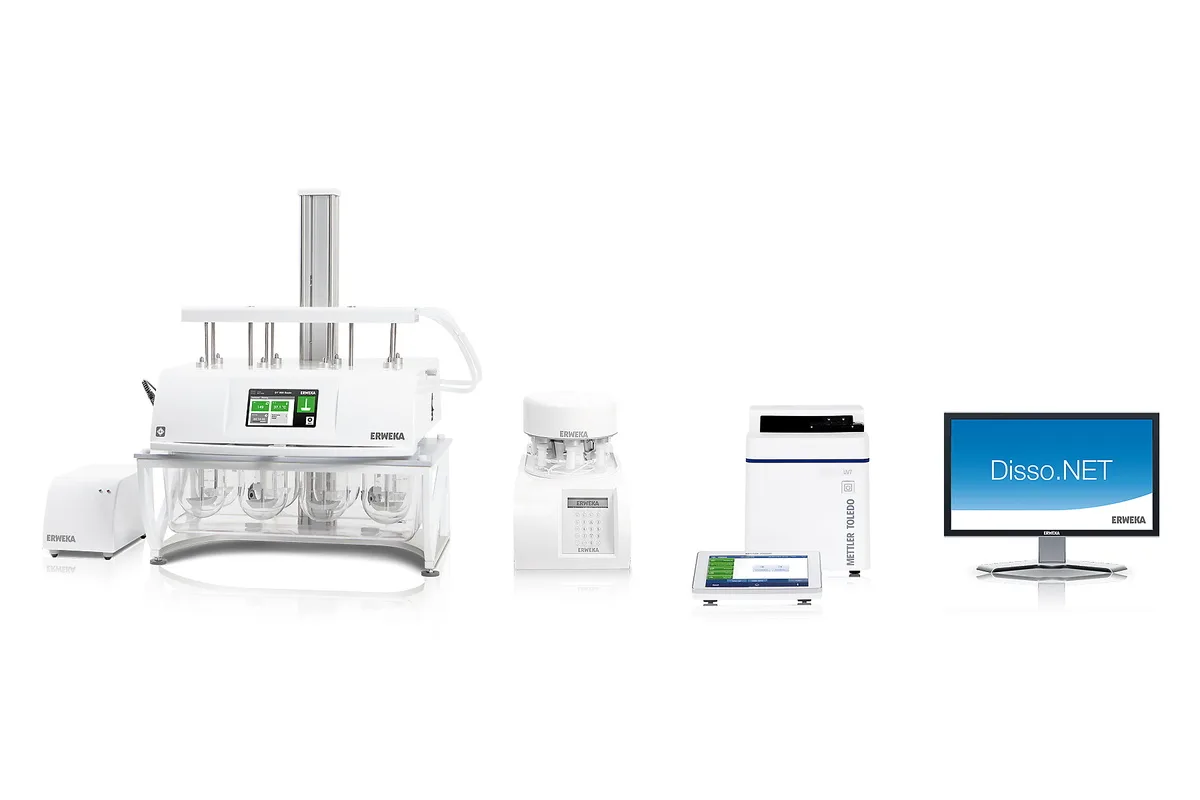

Erweka's dissolution online systems are a semi automatic solution for dissolution testing with automated UV/VIS online analysis. The DT 950 with its integrated, automated ASS-9 sampling station carries freshly sampled media straight to the UV/VIS analyser, where samples are measured and results stored in Erweka's Disso.NET software. Analysers offered include the Mettler Toledo UV7, the Shimadzu 1900i Plus, the Analytik Jena Specord 200/210 Plus and the Thermo Fisher Evolution Pro, each combined with the DT 950 and either an IPC 8 peristaltic pump or a PVP piston pump. Every component is controlled from the Disso.NET PC software.
Model specifications
Compare the named models or configurations. Confirm options and included accessories in your quotation.
| Base dissolution tester | DT 950 series | DT 9510 series |
|---|---|---|
| Weight | 42 kg | 110 kg |
| Dimensions (H x W x D) | 850 x 650 x 650 mm | 850 x 1062 x 650 mm |
| Speed | 20-250 U/min | 20-250 U/min |
| Vessel volume | 400 ml / 1000 ml / 2000 ml | 400 ml / 1000 ml / 2000 ml |
| Interfaces | 1x RS-232, 2x USB, 2x Ethernet/RJ45 | 1x RS-232, 2x USB, 2x Ethernet/RJ45 |
| Test-station options | 6, 7 or 8; select DT 956, DT 957 or DT 958 | 12, 13 or 14; select DT 9512, DT 9513 or DT 9514 |
Manufacturer catalogue checked 2026-09-29.
This table describes the base dissolution tester only, not the assembled online/offline system. Pump, sample collector, UV-Vis or HPLC interfaces, filters and software must be matched to the selected workflow. Overall system dimensions, weight and method validation are configuration-specific.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Test method, dosage form and required throughput
- Exact model configuration, measuring range and method-specific accessories
- Data handling, qualification/calibration documents and operator training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Erweka equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
More from Laboratory Instruments
- Dissolution On-/Offline System with UV-Vis
A semi automated dissolution system with connected UV-Vis measurement and sample collection, controlled by Disso.NET. Erweka present it as the ideal configuration for spectrophotometers: the attached PC runs the whole system through the Disso.NET software, which also gives full control over all components. Once analysis finishes, samples are stored using Erweka's own FRL 6/7/854 sample collector.
- Digital Dissolution Offline System, DT 950 and DT 9510 Series
This offline system extends the DT 950 and DT 9510 series with the first step in dissolution automation: fully automated sampling and storage in vials for separate analysis. The updated TestAssist lets the operator configure and start dissolution tests with automatic sampling from the 7 inch touch display, guiding the user through the test in a few steps for 100 % USP / EP / JP compliant work. User management configures individual rights, so functions can be restricted to administrators, operators and service technicians. Erweka describe it as their most advanced stand alone dissolution system and an easy entry point into dissolution automation.
- Dissolution HPLC On-/Offline System
Erweka's HPLC on/offline system is the semi automated route to 100 % USP / EP / JP compliant dissolution testing with HPLC online analysis. Up to 5 of the 8 dissolution steps can be automated by pairing a DT 950 or DT 9510 series tester with CTC sampling and online HPLC chromatography, the whole set controlled by Disso.NET. For filtration at 0.45 µm the automatic filter changer AFC 825 works alongside the maintenance free PVP pump, with other filter sizes available on request. After the dissolution test and double filtration with the PVP 820 pump and the AFC 825, medium is transferred to the HPLC sampler, filled into a PEEK transfer block and distributed into vials, where samples can be diluted for immediate analysis or cooled and shielded from UV radiation for later analysis.
