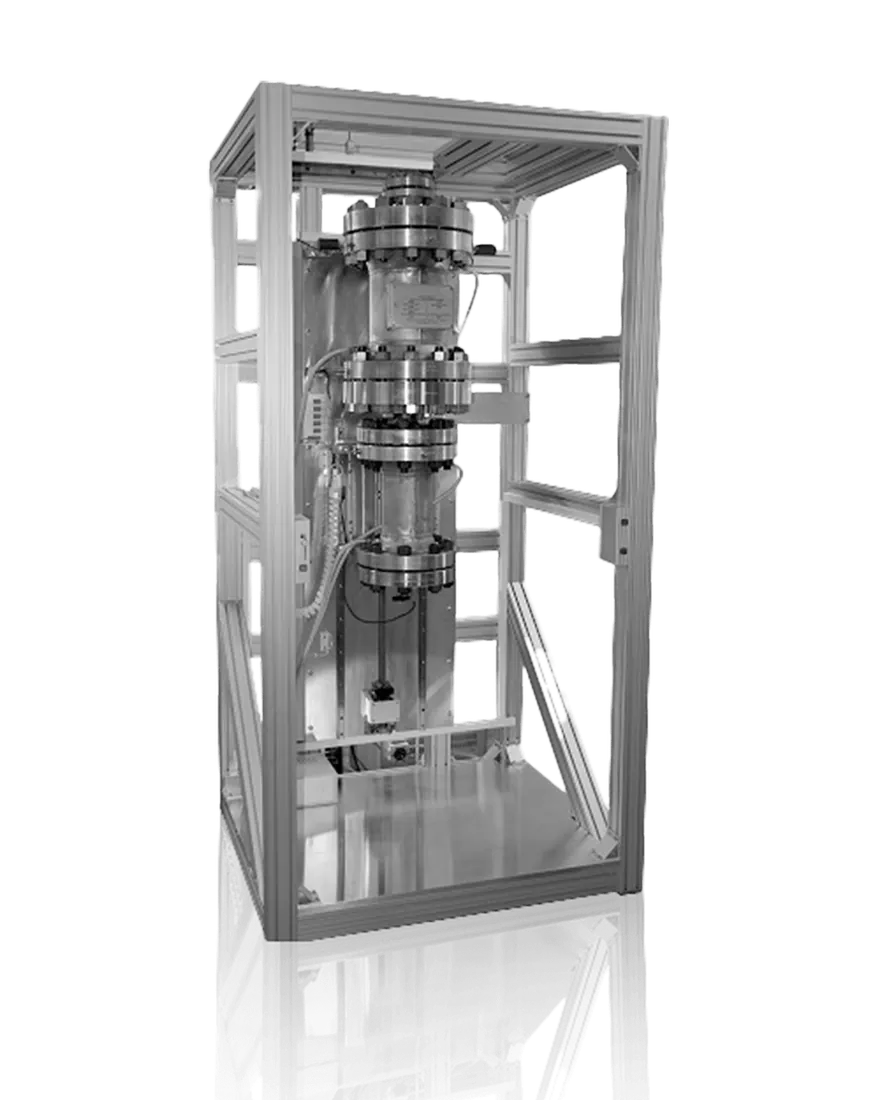

DIL HP L70
Brand: Linseis | Category: Nanotechnology
The DIL HP L70, formerly sold as the DIL L75 HP, is a high pressure dilatometer. It measures the change in length of a sample under combined pressure and temperature, at up to 150 bar and 1100 C. An optional steam generator and gas control extend it to reactive atmosphere testing.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | RT up to 1100 C |
| Max. pressure | max. 150 bar |
| Vacuum | 10E-4 mbar |
| Max. sample length | 50 mm, sample diameter: 7/12/20 mm |
| Adjustable sample pressure | up to 1000 mN |
| Measuring range | 500 / 5000 um, resolution 0.125 nm |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Linseis equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
