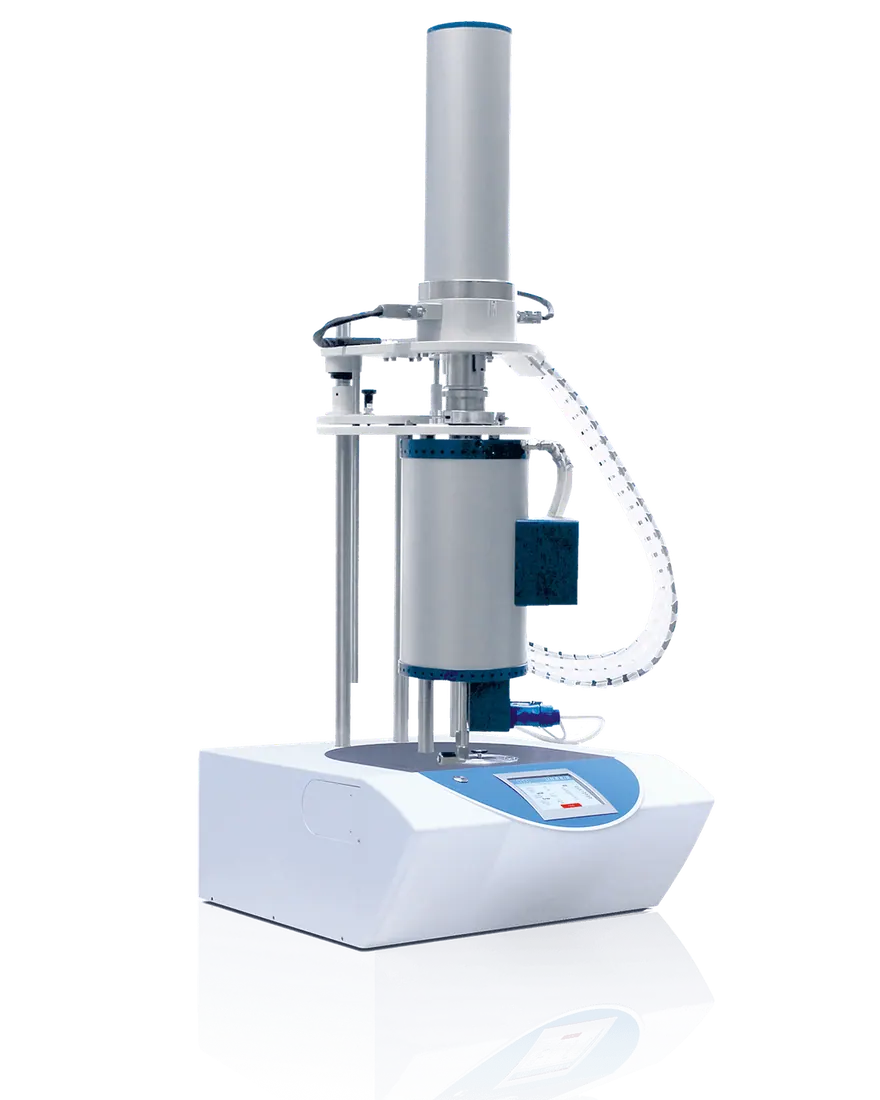

TMA L72
Brand: Linseis | Category: Nanotechnology
The TMA L72, formerly sold as the TMA PT 1600, is a thermomechanical analyser that measures expansion, softening and deformation under a defined load. It works up to 1600 C at a resolution of 0.125 nm and supports three-point bending tests. Atmospheres can be inert, oxidising or reducing.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | RT up to 1600 C |
| Sample size | 30 mm |
| Contact pressure | up to 1 or 5.7 N |
| Frequency | 1 or 5 Hz |
| Resolution | 0.125 nm |
| Atmosphere | reducing, inert, oxidising static / dynamic |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Linseis equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
